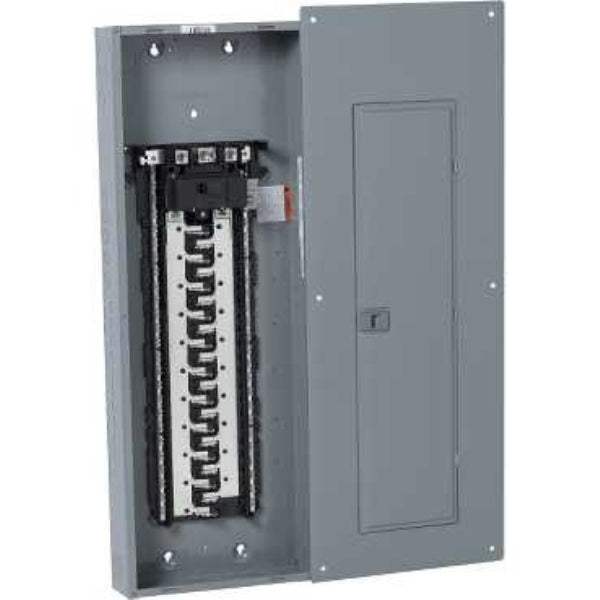

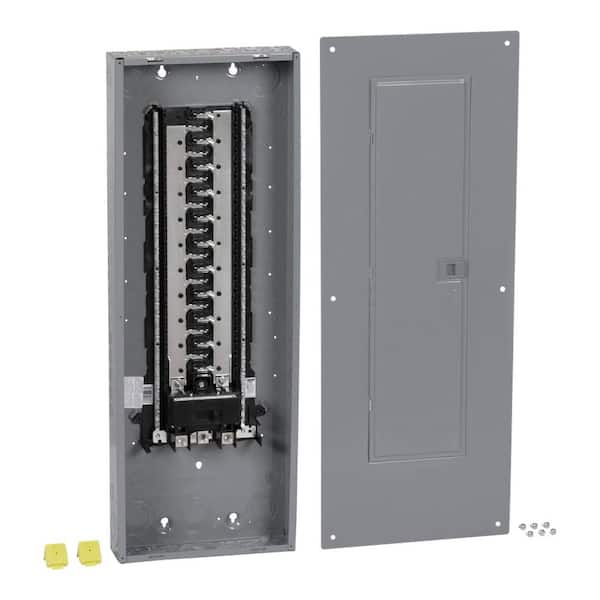

Schneider HOM4284M225PC Homeline Indoor Panel 225A 42/84C

Product Description

The SCHNEIDER HOM4284M225PC Homeline indoor panel features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. This load center has a two pole plug on neutral main supply circuit breaker rated at 225A 120/240 VAC single phase and provides a 22 kA breaking capacity.

• Less wiring
• Clean gutter
• Fast installation with Plug-On Neutral
• Compatible with any Square D Homeline circuit breaker

Product Highlights

This Homeline load center is designed for residential and industrial use to protect electrical systems, equipment and people. It has a NEMA 1 indoor enclosure with a combination flush/surface indoor cover.

Product Information

Standard Information

• Brand: SCHNEIDER
• Manufacturer Part Number: HOM4284M225PC
• Country of Origin: US - United States

Technical Specifications

• Rated Current: 225A
• No. of Spaces: 42
• No. of Circuits: 84
• NEMA Rating: 1
• Cover Type: Flush/Surface Cover
• Material: Tin Plated Aluminum
• AWG Range: AWG 4...250 kcmil
• Rated Voltage: 120/240V ac
• Wiring Configuration: 3-Wire
• Phase: Single-Phase
• Finish: Baked Enamel Gray
• Color: Baked Enamel Gray
• Max. Single Pole Circuits: 42
• Max. Tandem Circuits: 42
