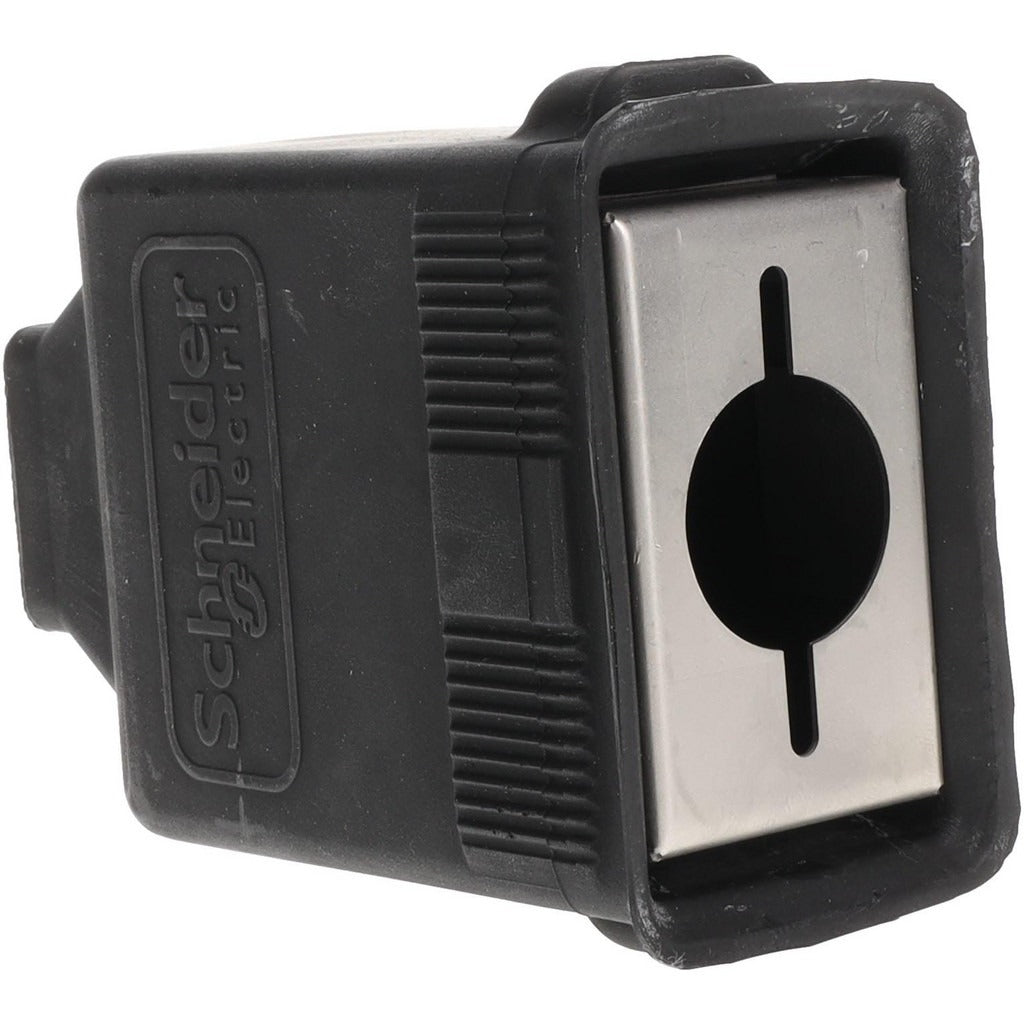

Schneider Electric ZBZ60 Pushbutton Switch Boot Black

Product Description

The SCHNEIDER ELECTRIC ZBZ60 is a black protective boot designed as a switch accessory for industrial pushbutton assemblies. It fits over the actuator of compatible Harmony series pushbuttons to provide a seal against dust, moisture, and contaminants, helping protect the contact block from environmental exposure. Weighing 0.27 pounds, the ZBZ60 is a direct-fit replacement component intended for use by industrial electricians and control panel technicians servicing Harmony XB4 and XB5 series pushbutton stations in commercial and industrial control applications.

This boot is suited for use in industrial control panels, machine operator interfaces, and process control stations where pushbutton protection is required. It is used as a replacement or maintenance accessory when the original boot is worn, torn, or missing. The ZBZ60 is compatible with a wide range of Harmony XB4 and XB5 pushbutton contact blocks and actuator modules, making it a practical stocking item for technicians who regularly service this product family.

Key Features

• Black protective boot shields pushbutton actuator from dust and moisture ingress
• Compatible with Harmony XB4 and XB5 series pushbutton assemblies
• Fits a broad range of ZBE-series contact block modules
• Lightweight at 0.27 pounds for easy field installation
• Sold as a single unit — suitable for individual replacement needs

Compatibility

Designed for use with Harmony XB4 Pushbuttons and Harmony XB5 Pushbuttons. Compatible contact block and actuator modules include: ZBE101, ZBE1013, ZBE102, ZBE1023, ZBE201, ZBE202, ZBE501, ZBE5013, ZBE502, ZBE5023, ZBE503, ZBE5033, ZBE504, ZBE5043, ZBE505, and ZBE5053.

Installation Notes

Installation is performed by a qualified electrician or industrial controls technician. De-energize and lock out the control panel before removing or replacing any pushbutton components, following applicable NFPA 70E and LOTO procedures. The boot seats over the actuator body and should be seated fully and evenly to maintain the intended environmental seal. Inspect the mating surfaces of the actuator for damage before installing a replacement boot.
