Schneider Electric ZBZ1605 Pushbutton Switch Guard

Product Description

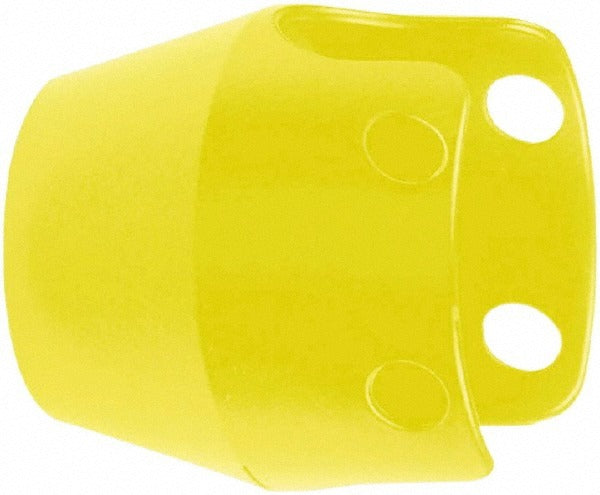

The SCHNEIDER ELECTRIC ZBZ1605 is a yellow metal guard designed for extended mushroom head pushbutton switches. It provides a protective barrier around the actuator to reduce accidental activation in industrial and commercial control panel applications. Fabricated from metal, the guard offers durability in demanding environments where incidental contact with the pushbutton is a concern. At 0.11 pounds, it is a lightweight addition to any control station. Electricians and controls technicians install this accessory when panel safety requirements call for guarded actuators on emergency or process-control pushbuttons.

This guard is suited for use in industrial control panels, machine safety circuits, and process automation equipment where pushbutton actuators require physical protection from unintended operation. It is compatible with a range of Harmony XB4 and XB5 series pushbutton assemblies and is sized to fit extended mushroom head actuator styles. It fits both surface-mount and flush-mount control station enclosures commonly found in light manufacturing and commercial building automation environments.

Key Features

• Yellow color provides visual identification and meets common panel-marking conventions for guarded controls
• Metal construction for durability in industrial control station environments
• Designed specifically for extended mushroom head pushbutton actuators
• Compact form factor at 2 inches height, 2.2 inches width, and 2 inches length
• Lightweight at 0.11 pounds for easy handling during panel assembly
• Sold individually, allowing single-unit replacement or panel builds

Compatibility

Compatible with Harmony XB4, Harmony XB5, XB4BS8, XB4BS9, XB4BT8, XB5AS8, XB5AS9, XB5AT8, ZB4BS8, ZB4BS9, ZB4BT8, ZB5AS8, ZB5AS9, and ZB5AT8 pushbutton assemblies.

Installation Notes

Installation is performed by licensed electricians or qualified controls technicians. De-energize the control panel and follow lockout/tagout procedures before servicing any pushbutton station or adding accessories. Verify that the guard is fully seated and secured to the mounting collar before restoring power. Installation should comply with applicable NFPA 79 or NEC requirements for industrial control panel wiring and components.
