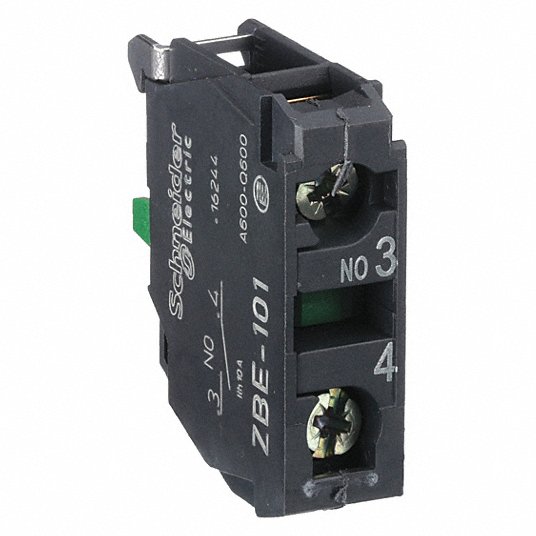

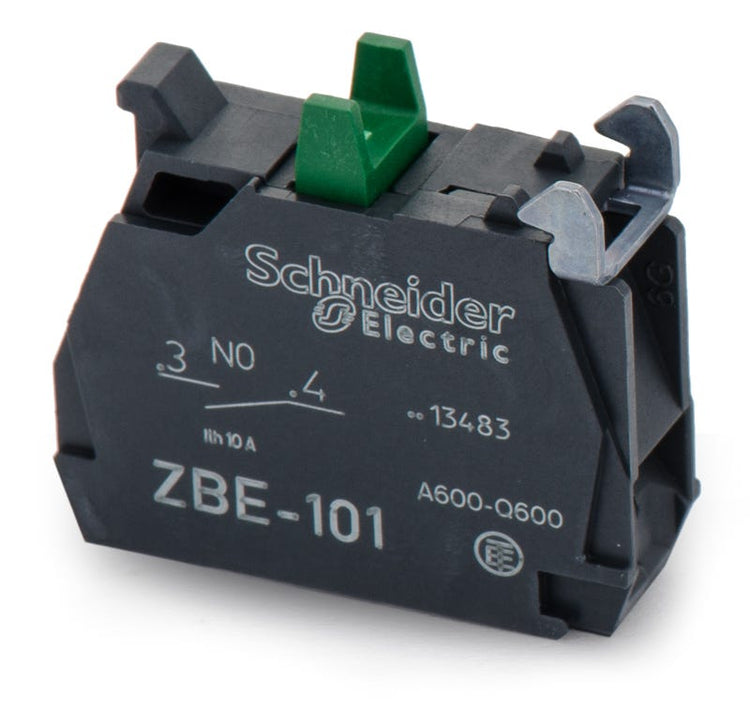

Schneider Electric ZBE101 Contact Block 1 N.O.

Product Description

The Schneider Electric ZBE101 is a contact block with a 22mm size and 1 N.O. configuration. This contact block securely connects to operator switches, supporting input and output wiring for various applications. It is compatible with ZB4 and ZB5 operator series.

• Compatible with ZB4 and ZB5 operators
• Screw clamp terminal connection
• Panel mount type

Product Highlights

Designed for reliable operation in various settings, the Schneider Electric ZBE101 offers ease of installation and compatibility with existing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ZBE101

Technical Specifications

• Connector Type: Screw
• Number Of Contacts: 1
• Mounting Type: Panel Mount
• Voltage: 600VAC
• Number Of Poles: 1
• Specification Met: Rohs, Reach
• Compatible Operator: Push Button
• AC Contact Rating: 1.2 A @600 V; 1.5 A @ 480 V; 3 A @ 240 V; 6 A @ 120 V
• DC Contact Rating: 0.1 A @ 600 V; 0.27 A @ 250 V; 0.55 A @ 125 V
• Includes Mounting Block: Mounting Block Included
• Manufacturer Warranty Length: 18 mo
• Mounting Location: Rear
• NEMA Contact Rating Designation: A600/Q600
• Panel Mounting Hole Diameter: 22 mm
• Standards: CSA C22.2 No.14; IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; JIS C8201-1; JIS C8201-5-1; UL 508
• Switch Action: Momentary
• Terminal Connection Type: Screw Clamp
• Current Rating: 6 A
• Family Name: Harmony XB4 / XB5 Family
• For Use With: 22mm Pushbutton Switch
• Series: Harmony XB4 Series
• Temperature Rating: -40 to 70 °C
• Contact Configuration: 1NO
• UPC Code: 785901355632
• Approval: UL, CSA, IEC, JIS, CCC, DNV, GOST, LROS, BV
