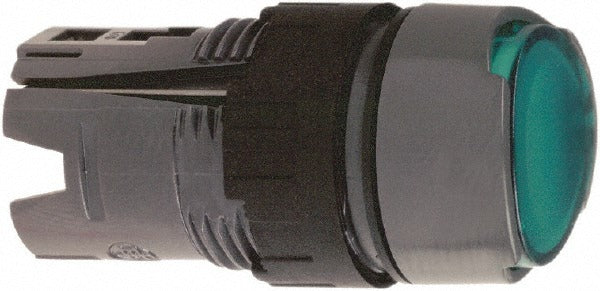

Schneider Electric ZB6AW3 Illuminated Push-button Switch

Product Description

The SCHNEIDER ELECTRIC ZB6AW3 is an illuminated momentary push-button switch designed for industrial control panel applications. It fits a 16 mm mounting hole and operates on 12 to 24 volts, making it compatible with a wide range of low-voltage control circuits. The flush-mounted, round green button is constructed from plastic and provides momentary (MO) contact action, meaning the circuit is active only while the button is depressed. Built to withstand vibration, this switch suits demanding environments where reliable operator input is required. Licensed electricians and control panel builders are the primary installers of this device.

The ZB6AW3 is used in industrial and commercial control panel assemblies where a compact, illuminated operator interface is needed. Its 16 mm mounting hole diameter fits standard industrial enclosure cutouts. The illuminated green button provides clear visual status feedback to operators on the floor. NEMA ratings of 4, 4X, and 13 make it suitable for washdown, dust-tight, and weather-resistant enclosure applications. It ships as a single-unit package and is ordered in single-unit increments.

Key Features

• Illuminated green flush round button provides operator status feedback at a glance
• Momentary (MO) operation — contact closes only while button is held depressed
• 12 to 24 volt operating range covers common low-voltage control circuit designs
• Vibration-resistant construction suits industrial machinery and panel environments
• NEMA 4, 4X, and 13 ratings support washdown, weather, and dust-tight enclosures
• 16 mm mounting hole diameter matches standard industrial panel cutout dimensions

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for industrial control panels using standard 16 mm mounting hole cutouts with 12 to 24 volt control circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines and applicable local codes. De-energize the control panel and verify zero voltage at the mounting location before installing or replacing this switch. The switch body threads into a 16 mm panel cutout — do not overtighten the mounting nut, as the plastic operator body can crack. Verify the control circuit voltage is within the 12 to 24 volt rated range before restoring power.
