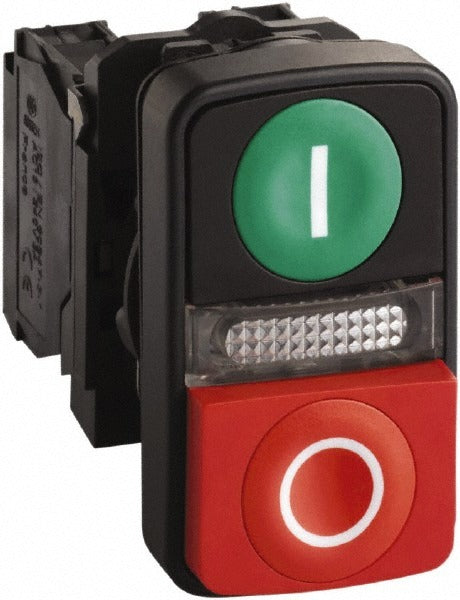

Schneider Electric ZB5AW7L3741 Illuminated Push-button Switch

Product Description

The SCHNEIDER ELECTRIC ZB5AW7L3741 is an illuminated momentary push-button switch designed for industrial control panel applications. The switch features a 22 mm mounting hole diameter and uses an LED light source for operator illumination. Available with green and red rectangular extended or flush operators, it is built around a chromium-plated metal bezel. The momentary (MO) action provides an on-off switch sequence suited for start-stop control circuits. Rated for NEMA 4X and NEMA 13 enclosure environments, it is resistant to shock and vibration, making it reliable in demanding industrial settings. Licensed electricians and control panel builders are the primary installers.

This switch is suited for use in industrial control panels, machine tool enclosures, and process equipment requiring operator-interface switching in wet, dusty, or wash-down environments. The NEMA 4X rating supports use in both indoor and outdoor applications where water ingress and corrosion resistance are required. The rectangular green and red push-button operators support common start-stop and maintained-indicator conventions found in factory automation and motor control center panels. Both extended and flush operator profiles are included, allowing the installer to configure the switch face to application requirements.

Key Features

• 22 mm mounting hole diameter fits standard 22 mm panel cutouts
• LED illumination provides long-service-life operator indication
• Momentary (MO) on-off switch sequence for start-stop control applications
• Green and red rectangular operator options with extended and flush profiles
• Chromium-plated metal bezel for durability in industrial environments
• Shock-resistant and vibration-resistant construction
• NEMA 4X and NEMA 13 rated for wet and wash-down environments

Compatibility

Designed as an OEM-style replacement or new-installation illuminated push-button switch for 22 mm industrial control panel assemblies meeting the listed standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before mounting or wiring the switch. The 22 mm panel cutout should be clean and free of burrs before inserting the operator body. Verify the LED supply voltage matches the circuit voltage before completing wiring connections.
