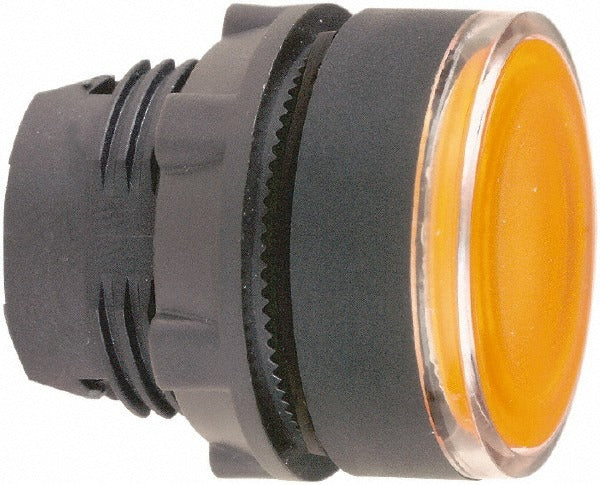

Schneider Electric ZB5AW353 Illuminated Push-button Switch

Product Description

The SCHNEIDER ELECTRIC ZB5AW353 is an illuminated, momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter, a flush-profile round operator in orange plastic, and a momentary (MO) action that returns to its default state upon release. Weighing just 0.03 pounds, the ZB5AW353 is a compact control component suited for panel builders, industrial electricians, and MRO maintenance technicians working on machine control and automation systems. It carries a wide range of international certifications, including UL 508 listing, CSA, and EN/IEC 60947-5-1 compliance.

This push-button switch is intended for use in industrial control panels, machinery, and automation equipment requiring a momentary operator with visual illumination. Its NEMA 4X and NEMA 13 ratings make it appropriate for environments exposed to dust, oil, and washdown conditions. The orange color provides a clear visual indicator for operator functions such as cycle start, jog, or fault reset in both light manufacturing and heavy industrial settings. Licensed electricians and panel builders typically install this component during new panel construction or as a direct operator replacement.

Key Features

• 22 mm mounting hole diameter for standard 22 mm panel cutouts
• Momentary (MO) operation returns to default state on release
• Illuminated flush-profile round operator in orange plastic
• NEMA 4X and NEMA 13 rated for dust- and oil-resistant environments
• UL 508 listed with CSA, DNV, GL, and EN/IEC 60947-5-1 certifications
• Compact form factor at approximately 1.3 inches length, 1.2 inches width, and 1.2 inches height

Compatibility

Designed as a 22 mm flush-mount illuminated momentary push-button operator compatible with standard 22 mm industrial control panel cutouts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lockout/tagout the control panel before installing or removing this operator. Verify the panel cutout diameter is 22 mm before mounting to ensure a proper fit and seal. Confirm illumination voltage requirements are compatible with the control circuit before wiring the illuminated operator.
