Schneider Electric ZB5AW35 Illuminated Push-button Switch 22mm

Product Description

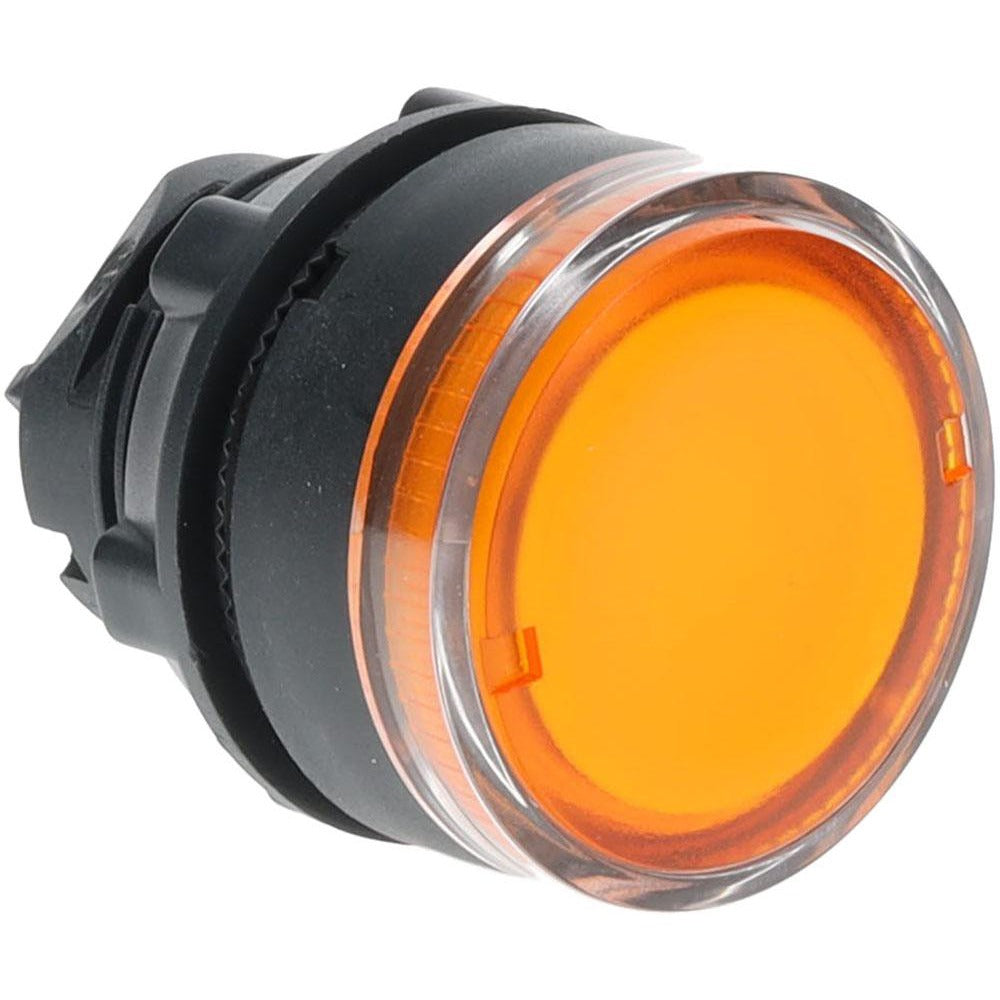

The SCHNEIDER ELECTRIC ZB5AW35 is an illuminated, momentary push-button switch designed for use in industrial control panels and automation equipment. It features a 22 mm mounting hole diameter, a flush-style round operator in orange plastic, and momentary (MO) actuation — meaning the switch returns to its default state when released. Licensed electricians and panel builders install this type of switch in machine control enclosures where visual status indication and operator input are required together in a single component.

This switch is suited for commercial and industrial applications including motor control centers, automation panels, and operator interface stations. The flush-mount, round orange operator provides quick visual identification for specific control functions. Its NEMA 4X and NEMA 13 ratings make it appropriate for environments exposed to dust, oil, and washdown conditions. Certifications cover a broad range of domestic and international standards, supporting use in multi-region equipment builds.

Key Features

• 22 mm mounting hole diameter — fits standard 22 mm panel cutouts
• Momentary (MO) operation — returns to default state upon release
• Illuminated operator for integrated visual indication
• Flush-mount, round orange plastic operator for clear function identification
• NEMA 4X and NEMA 13 rated for dust, oil, and washdown environments
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for standard 22 mm industrial control panel cutouts meeting the listed NEMA, UL, and IEC certification requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before mounting or wiring the switch. The 22 mm mounting hole should be clean and burr-free to ensure a proper seal for the NEMA 4X rating. Do not exceed the rated electrical parameters for the switch contact block paired with this operator.
