Schneider Electric ZB5AW133 Illuminated Push-button Switch

Product Description

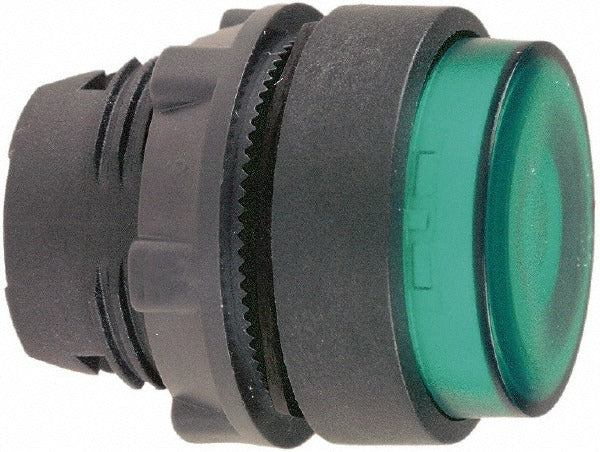

The SCHNEIDER ELECTRIC ZB5AW133 is an illuminated, momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter and a green, round, extended (straight) plastic operator. The momentary (MO) operation type means the circuit is active only while the button is pressed, making it well suited for start, jog, or signal functions. The switch carries a NEMA 4X and NEMA 13 rating, indicating resistance to washdown, corrosion, and dust ingress. Licensed electricians and control panel builders are the primary installers of this component.

This push-button switch is used in industrial and commercial control panel assemblies where a 22 mm cutout is standard. The illuminated green operator provides a clear visual status indicator in machinery, motor control centers, and automation enclosures. Its extended, straight-profile operator allows for reliable actuation even when operators are wearing gloves. The NEMA 4X rating makes it appropriate for wet or corrosive environments such as food processing, chemical handling, or outdoor enclosures.

Key Features

• 22 mm mounting hole diameter fits standard 22 mm panel cutouts
• Illuminated green operator provides visual feedback at the control station
• Momentary (MO) operation — circuit closes only while button is depressed
• Extended (straight) round plastic operator for positive, glove-friendly actuation
• NEMA 4X and NEMA 13 rated for washdown, dust, and corrosion resistance
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 22 mm industrial control panel assemblies requiring an illuminated momentary switch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the control panel before installing or replacing the switch operator. Verify that the panel cutout diameter matches the 22 mm mounting requirement before insertion. Do not exceed the voltage and current ratings specified on the product nameplate or datasheet.
