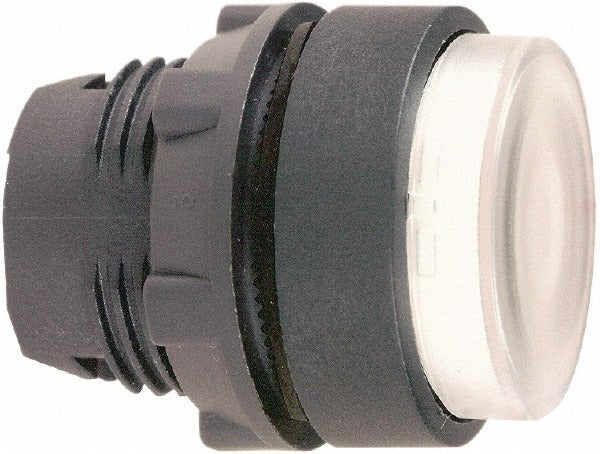

Schneider Electric ZB5AW113 Illuminated Push-button Switch

Product Description

The SCHNEIDER ELECTRIC ZB5AW113 is an illuminated momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter, a white round extended (straight) push button made from plastic, and a momentary (MO) operation type that returns to its default position upon release. The switch carries NEMA 4X and 13 ratings, making it suitable for environments that demand protection against washdowns, dust, and corrosion. Licensed electricians and control panel builders typically specify this switch for machine control, process automation, and operator interface assemblies.

This push-button switch is used in industrial and commercial control panels where momentary operator input is required. The illuminated operator provides visual status feedback to the operator, which is particularly useful in low-light environments or complex panel layouts. Its NEMA 4X rating supports use in wet or washdown locations, and its broad certification portfolio makes it appropriate for both domestic and international installations. Panel shops, OEM machine builders, and MRO technicians are the primary installers of this component.

Key Features

• 22 mm mounting hole diameter for compatibility with standard 22 mm panel cutouts
• Momentary (MO) operation returns switch to default state upon release
• Illuminated white round extended push button for visual operator feedback
• NEMA 4X and NEMA 13 ratings for protection in wet, dusty, and corrosive environments
• Plastic push button construction with extended (straight) profile
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple additional international standards

Compatibility

Designed as an OEM-style replacement or new-installation component for standard 22 mm industrial control panel push-button assemblies requiring a momentary illuminated operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. The 22 mm panel cutout must be clean and within tolerance to ensure proper sealing and NEMA rating integrity. Do not exceed the switch rated electrical parameters as specified in the manufacturer documentation.
