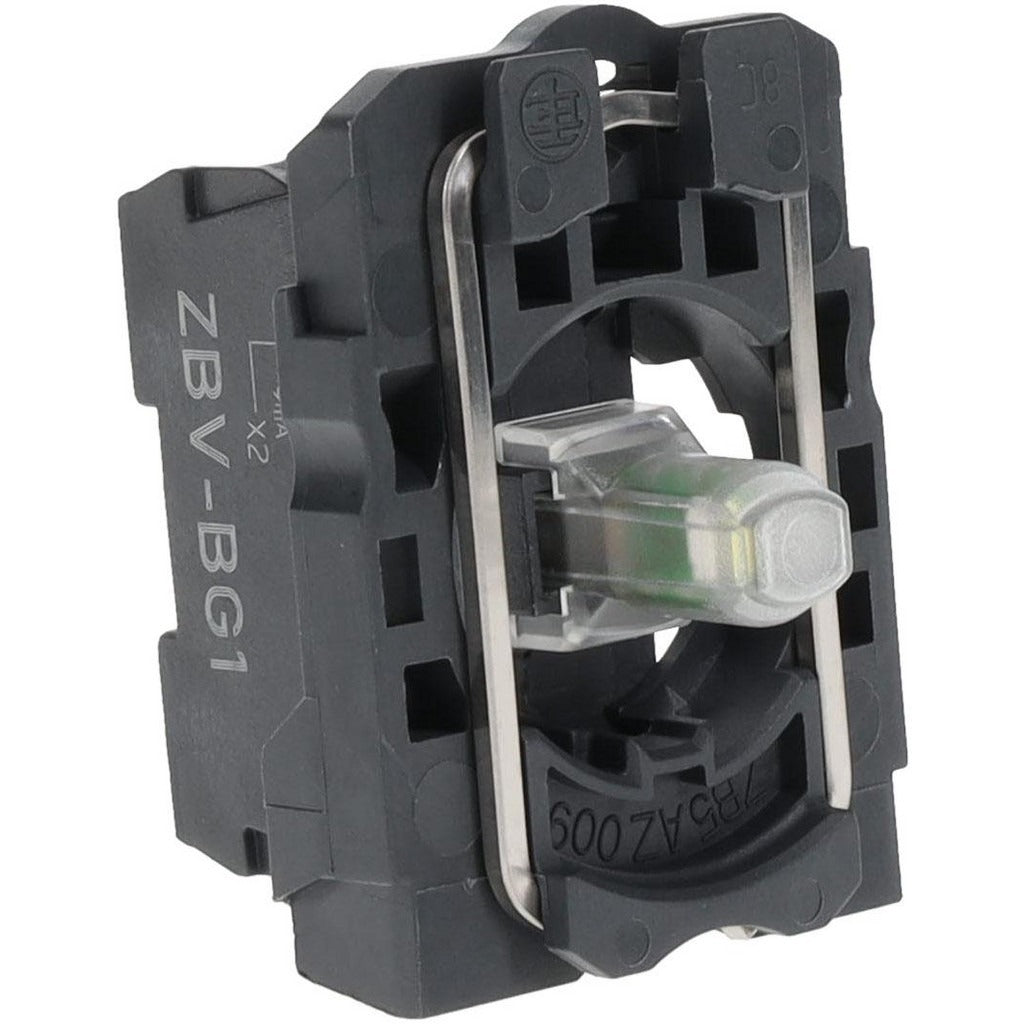

Schneider Electric ZB5AVBG1 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC ZB5AVBG1 is an LED indicating light with a white lens, designed for panel and control station mounting in industrial and commercial electrical applications. It operates across a wide voltage range of 24 to 120 volts, making it compatible with a broad range of control circuits without requiring a separate transformer or resistor in many configurations. The screw clamp connector provides a secure, tool-assisted termination that resists loosening under vibration. At 0.15 pounds, the ZB5AVBG1 is a compact, lightweight pilot light suited for electricians and controls technicians assembling or servicing operator panels and enclosures.

This indicating light is used in industrial control panels, machine operator stations, and commercial electrical enclosures where a clear status indication is required. Its vibration-resistant construction makes it appropriate for equipment subject to mechanical vibration, such as compressor control panels, pump stations, and motor control centers. The white lens color provides a neutral or power-on indication depending on panel design. It is packaged individually and intended for direct installation or as a replacement pilot light in existing control station assemblies.

Key Features

• Wide voltage range: 24 to 120 volts AC/DC for flexible control circuit integration
• LED lamp type for long service life and low power draw compared to incandescent pilots
• White lens for neutral or power-status indication on operator panels
• Screw clamp electrical connection for secure, vibration-resistant termination
• Vibration-resistant construction suitable for demanding industrial environments
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or new-installation LED pilot light for industrial control panels and operator stations requiring a 24-120 volt white-lens indicating light with screw clamp termination.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any pilot light assembly. Confirm the supply voltage is within the 24-120 volt operating range before connection. Tighten screw clamp terminals to the connector manufacturer specification using a suitable slotted or precision screwdriver.
