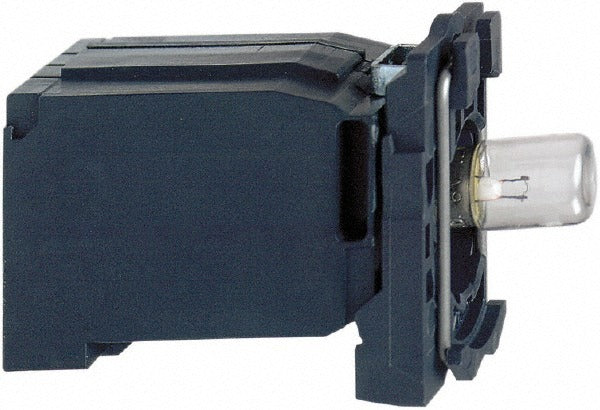

Schneider Electric ZB5AV8 Incandescent Indicating Light

Product Description

The SCHNEIDER ELECTRIC ZB5AV8 is an incandescent indicating light designed for industrial control panel applications operating at 440 to 480 VAC at 50/60 Hz. It uses a screw clamp connector for a secure, tool-assisted termination and is built to resist vibration, making it suitable for machinery and equipment where mechanical stress is a concern. The unit measures 3.1 inches in length, 1.7 inches in width, and 1.3 inches in height, and weighs approximately 0.22 pounds. Licensed electricians and panel builders typically install this component as part of machine control or status indication systems.

The ZB5AV8 is suited for use in industrial and commercial control panels, motor control centers, and machine operator interfaces where high-voltage indication is required. Its vibration-resistant construction makes it appropriate for demanding environments such as manufacturing floors, marine installations, and heavy equipment panels. The part meets an extensive list of international certifications, making it viable for projects requiring compliance with UL, CSA, IEC, and other recognized standards.

Key Features

• Operates at 440 to 480 VAC at 50/60 Hz for high-voltage indication applications
• Incandescent lamp type provides straightforward visual status signaling
• Screw clamp connector for reliable, secure wiring termination
• Vibration-resistant construction suited for industrial and marine environments
• Compact form factor: 3.1 inches long, 1.7 inches wide, 1.3 inches tall
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style indicating light for industrial control panels and operator interface assemblies requiring 440 to 480 VAC incandescent indication with screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and any applicable local codes. Disconnect and lock out all power to the control panel before removing or installing the indicating light. Screw clamp terminals should be tightened with an appropriate small-blade screwdriver to ensure a secure connection. Verify voltage rating compatibility with the control circuit before energizing the panel.
