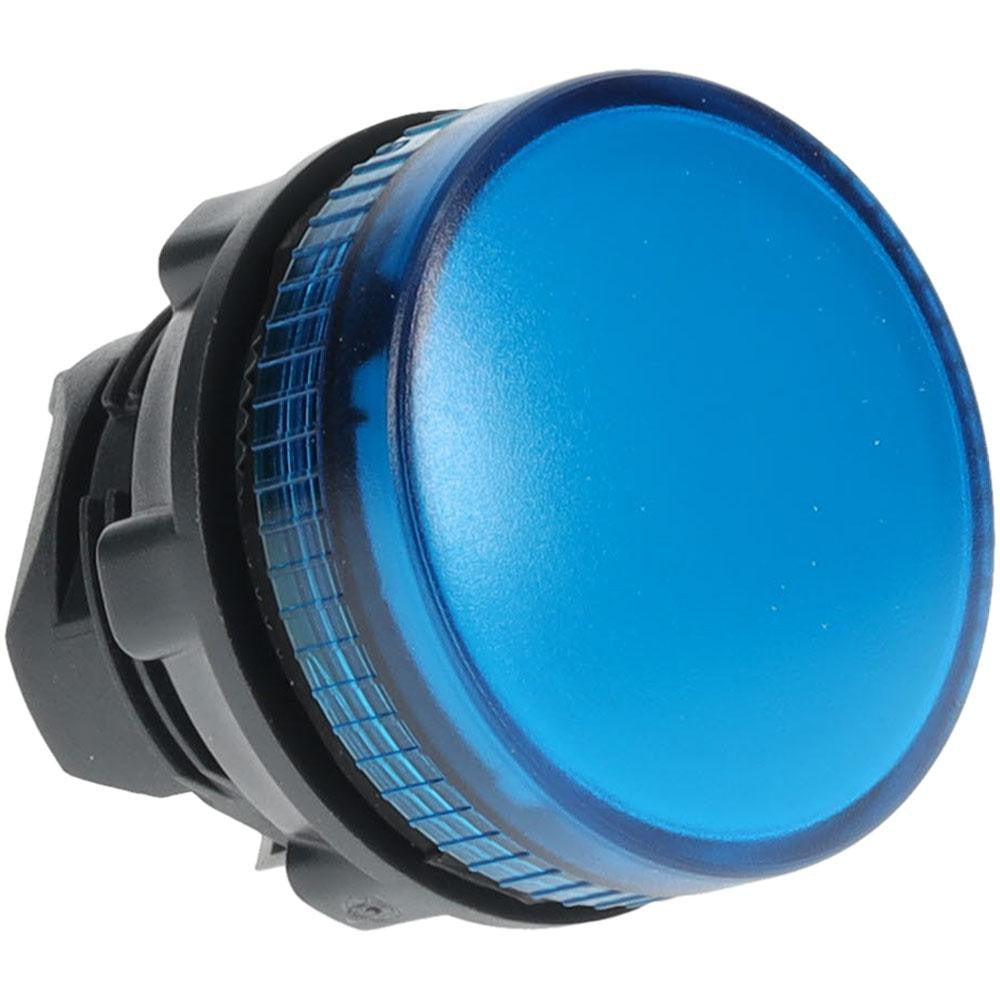

Schneider Electric ZB5AV06 Round Indicator Light Lens Blue

Product Description

The SCHNEIDER ELECTRIC ZB5AV06 is a round, blue replacement lens designed for pilot and indicator light assemblies used in industrial control panels and machinery. This lens fits BA9s lamp bases and provides the color-coded visual indication that panel technicians and electricians rely on to communicate status, alarms, and operational states at a glance. At 1.3 inches in all three dimensions, the compact form factor suits standard 22 mm panel cutout assemblies. It meets a broad set of international standards including UL 508, NEMA 4X/13, and IEC 60947-series requirements, making it suitable for protected indoor and outdoor enclosure environments. Electricians and panel builders install this lens as a direct OEM-style replacement when the original becomes cracked, discolored, or damaged.

The ZB5AV06 is used in commercial and industrial settings wherever BA9s-based pilot light assemblies are mounted in control panels, machine operator stations, or enclosures rated NEMA 4X or 13. Typical applications include motor control centers, conveyor systems, HVAC control panels, and general-purpose industrial machinery indicator stations. The blue color coding follows standard panel-wiring conventions to differentiate function or status from other indicator colors on the same panel face.

Key Features

• Blue round lens for BA9s pilot and indicator light assemblies
• Compact 1.3 x 1.3 x 1.3 inch profile fits standard 22 mm panel cutout hardware
• Rated NEMA 4X/13 for resistance to dust, oil, and water ingress
• Compliant with UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, and JIS C 4520
• Sold individually — no minimum multi-pack required

Compatibility

Designed as an OEM-style replacement lens for BA9s pilot and indicator light assemblies in industrial control panel applications.

Installation Notes

Installation is performed by a licensed electrician or qualified panel technician. De-energize and lock out the control panel before removing or replacing any indicator lens or lamp assembly in accordance with NFPA 70E and applicable NEC guidelines. Ensure the replacement lens is fully seated and secure before restoring power. Do not force or overtighten the lens retaining ring, as this can crack the lens body.
