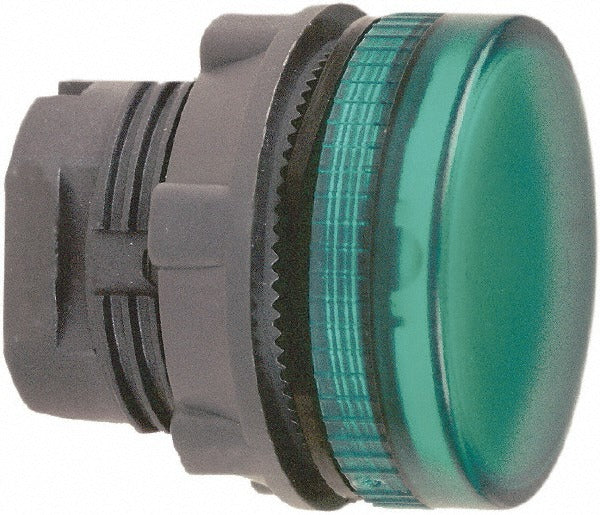

Schneider Electric ZB5AV03 Indicator Light Lens Green

Product Description

The SCHNEIDER ELECTRIC ZB5AV03 is a round green lens designed for use with pilot and indicator lights in industrial control panel applications. This lens serves as a light accessory component, replacing or restoring the visible indicator on pushbutton and pilot light assemblies. Measuring 1.3 inches in length and 1.1 inches in height and width, it is a compact, direct-fit part intended for installation by licensed electricians and qualified control panel technicians. Weighing just 0.03 pounds, the ZB5AV03 is a lightweight replacement component that restores proper visual signaling function to indicator light assemblies.

The ZB5AV03 green lens is suited for use in industrial and commercial control panel environments where visual status indication is required. Pilot and indicator lights are commonly found on motor control centers, machine control panels, HVAC equipment control circuits, and other low-voltage electrical enclosures. This lens is appropriate for applications requiring a green indicator color, typically used to signal a run, on, or normal operating condition in accordance with standard panel wiring conventions.

Key Features

• Green lens color for standard run or on status indication
• Round profile designed for pilot and indicator light assemblies
• Compact dimensions: 1.3 inches length, 1.1 inches height, 1.1 inches width
• Lightweight construction at 0.03 pounds
• Sold individually — package quantity of one

Compatibility

Designed as an OEM-style replacement lens for compatible Schneider Electric pilot and indicator light assemblies. Verify fitment against your existing assembly part number before installation.

Installation Notes

Installation should be performed by a qualified electrician or control panel technician. De-energize and lock out the control panel per NFPA 70E procedures before servicing any indicator light assembly. The lens typically snaps or threads into the indicator light body — do not force or overtighten to avoid cracking. Verify the replacement lens color meets applicable panel labeling and indicator color standards for your application.
