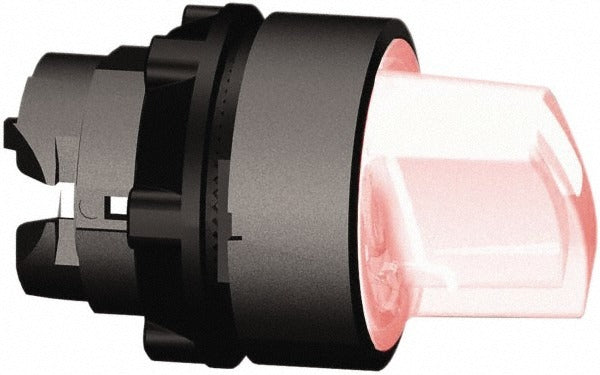

Schneider Electric ZB5AK1243 Selector Switch 2 Position

Product Description

The SCHNEIDER ELECTRIC ZB5AK1243 is a 2-position maintained-action selector switch operator designed for industrial and commercial control panel applications. This is the operator head only, featuring a red handle with a round head profile and plastic bezel. It mounts through a 22mm panel cutout and carries an IP69K ingress protection rating, making it suitable for environments exposed to high-pressure washdowns, moisture, and heavy vibration. The unit weighs 0.03 pounds and measures approximately 1.3 inches high, 1.3 inches wide, and 1.7 inches in length. Licensed electricians and control panel builders are the primary installers of this component.

The ZB5AK1243 is used in residential, commercial, and light industrial control panels where a durable, corrosion-resistant selector switch operator is required. The maintained action means the handle stays in its selected position after actuation, making it appropriate for on/off, hand/auto, or similar two-state selector functions. Its shock-resistant and vibration-resistant construction suits demanding environments such as pump panels, processing equipment, and marine or food-service installations where NEMA 4X and NEMA 13 ratings are specified.

Key Features

• 2-position maintained action holds selected state without spring return
• IP69K ingress protection rating — resistant to high-pressure, high-temperature washdowns
• NEMA 13 and NEMA 4X rated for oil-tight and watertight enclosure compatibility
• 22mm mounting hole diameter for standard panel cutout fitment
• Shock-resistant and vibration-resistant construction for harsh-duty installations
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style 22mm selector switch operator head compatible with standard 22mm ZB5 series contact block assemblies and mounting hardware as specified in the input data. No additional specific model compatibility data was provided.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify zero-energy state before removing or installing any switch operator. This part is the operator head only and requires separate compatible contact blocks and a mounting base to complete the assembly. Confirm panel cutout diameter and enclosure NEMA rating match application requirements before installation.
