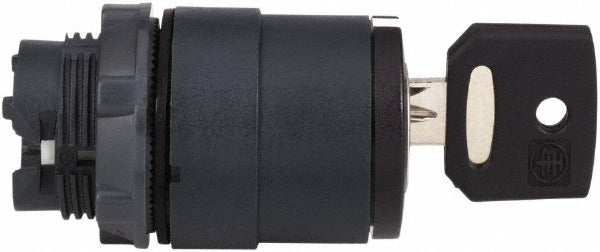

Schneider Electric ZB5AG0 3-position Key Selector Switch

Product Description

The SCHNEIDER ELECTRIC ZB5AG0 is a 3-position key-operated selector switch head designed for industrial and commercial control panel applications. It uses a maintained (MA) operation type, meaning the switch holds its selected position until manually moved. The black key can be removed at any position, which adds a layer of access control in environments where operator lockout is required. Rated IP69K, this selector switch head resists high-pressure washdowns, making it suitable for demanding environments. The round head fits a standard 22 mm panel cutout and features a plastic bezel construction. Licensed electricians and controls technicians are the primary installers.

The ZB5AG0 is suited for use in light industrial, food processing, marine, and commercial facilities where moisture, vibration, or shock exposure is a concern. Its IP69K and NEMA 4X ratings make it appropriate for wet or wash-down locations. The NEMA 13 rating covers oil-tight indoor applications as well. This switch operator head is typically wired into machine control circuits, motor starters, or automation panels requiring a key-controlled multi-position selector input. It is sold as the operator head only and requires a separate contact block assembly to complete the switching function.

Key Features

• 3-position maintained operation — holds position without spring return
• Key-operated with black key removable at any position for access control
• IP69K rated — withstands high-pressure, high-temperature washdown
• NEMA 4X and NEMA 13 rated for wet, corrosive, and oil-tight environments
• Shock-resistant and vibration-resistant construction
• Standard 22 mm round mounting hole — compatible with 22 mm panel cutout systems
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style operator head for 22 mm selector switch assemblies. Requires a compatible 22 mm contact block to complete the circuit. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician or controls technician in accordance with NEC requirements and local codes. De-energize the control panel and lock out all power sources before beginning installation or removal. The operator head mounts through a 22 mm panel cutout and secures with the appropriate mounting collar or nut. This part is the operator head only — do not attempt to use it as a complete switching device without attaching a rated contact block.
