Schneider Electric ZB5AD922 Selector Switch Head 22mm

Product Description

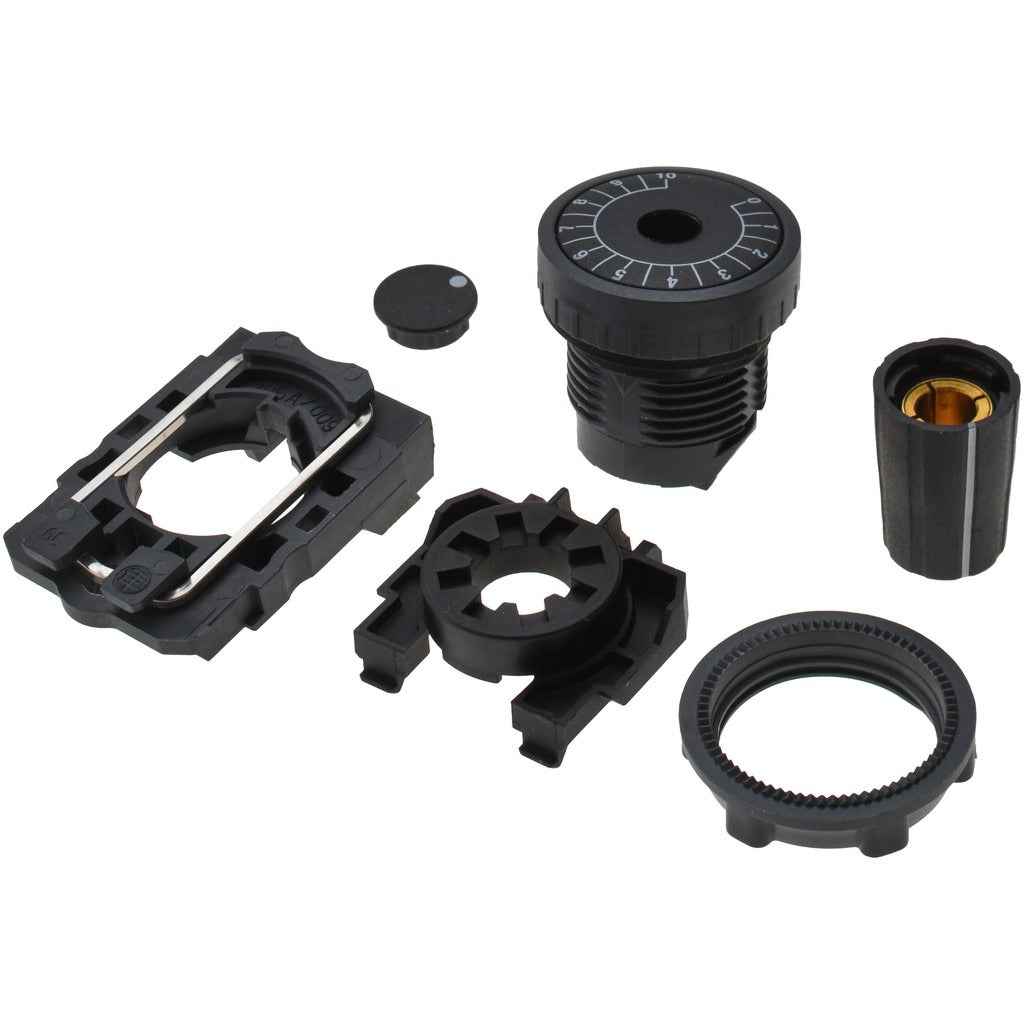

The SCHNEIDER ELECTRIC ZB5AD922 is a 22mm selector switch head and mounting base designed for use with 6.35mm shaft potentiometers. This component provides the operator interface and structural mount for rotary selector applications in industrial control panels and machinery. White markings on the selector head give clear visual indication of switch position, aiding technicians during commissioning and daily operation. The part measures 2.1 inches in length, 1.7 inches in height, and 1.3 inches in width, making it a compact addition to standard 22mm panel cutouts. Licensed electricians and industrial maintenance technicians are the primary installers of this type of component.

This selector switch head and mounting base is suited for industrial control panel assemblies where a 22mm mounting hole diameter is specified. It pairs directly with 6.35mm shaft potentiometers, providing the mechanical interface between the operator and the underlying control element. Typical applications include machine tool panels, process control enclosures, and equipment control stations where rotary selection or adjustment is required. The white position markings support clear readability in both well-lit and low-light industrial environments.

Key Features

• 22mm mounting hole diameter fits standard industrial panel cutouts
• Designed for direct use with 6.35mm shaft potentiometers
• White markings provide clear visual position indication
• Compact form factor: 2.1 x 1.3 x 1.7 inches
• Combined head and mounting base supplied as a single assembly

Compatibility

Designed for use with 6.35mm shaft potentiometers in 22mm mounting hole panel applications. Consult SCHNEIDER ELECTRIC documentation to confirm fitment with specific potentiometer and enclosure configurations.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. De-energize the control panel and follow lockout/tagout procedures before removing or installing any panel-mount control component. Verify that the panel cutout diameter is 22mm before mounting. Confirm shaft diameter compatibility with the installed potentiometer before assembly.
