Schneider Electric ZB5AD8 3-position Momentary Selector Switch

Product Description

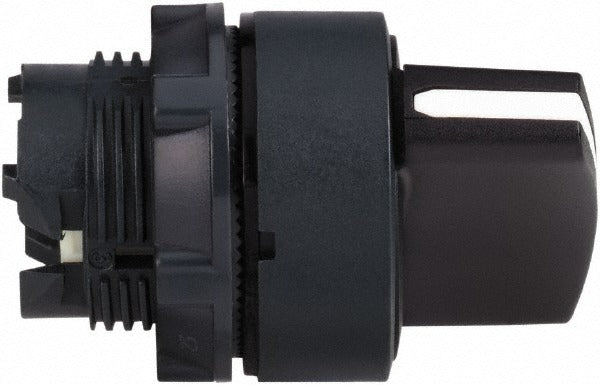

The SCHNEIDER ELECTRIC ZB5AD8 is a 3-position momentary selector switch operator designed for industrial and commercial control panel applications. This non-illuminated, black-handle unit features a round head with a 22 mm panel cutout diameter and a plastic bezel. It operates in momentary (MO) mode across all three positions and is rated NEMA 4X and NEMA 13 for use in environments that demand resistance to water, dust, shock, and vibration. At 0.04 pounds, it is a lightweight operator component intended for use with compatible contact blocks to form a complete switch assembly.

This selector switch operator is suited for residential, commercial, and light industrial control panels where a 3-position momentary input is required. Typical applications include motor control centers, machine control stations, and HVAC equipment control enclosures. The NEMA 4X and IP66/IP69K ratings make it appropriate for wash-down environments and outdoor enclosures. It is installed by electricians and industrial controls technicians as part of a modular pushbutton and selector switch assembly system.

Key Features

• 3-position momentary (MO) operation for temporary contact closure in each switched position
• 22 mm round panel cutout fits standard 22 mm modular control station cutouts
• NEMA 4X and NEMA 13 rated — resistant to water, oil, and corrosion
• IP66 and IP69K ingress protection for use in wash-down and high-pressure spray environments
• Shock-resistant and vibration-resistant construction with plastic bezel
• Non-illuminated black handle for clear visual identification in panel layouts
• Listed to UL 508 and certified to CSA, DNV, GL, RINA, and multiple EN/IEC standards

Compatibility

Designed as an OEM-style operator component for 22 mm modular selector switch assemblies requiring a 3-position momentary configuration. Compatible contact blocks and mounting bases are sold separately. No specific system or model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local codes. De-energize the control panel and verify zero voltage with a meter before beginning any work on the enclosure. The operator mounts into a 22 mm panel cutout and requires a compatible contact block to complete the electrical circuit — do not apply voltage to the operator alone. Verify that the enclosure rating matches or exceeds the NEMA 4X and IP66/IP69K ratings of this component before installation in wet or wash-down locations.
