Schneider Electric ZB5AA6 Push-button Switch 22mm Momentary

Product Description

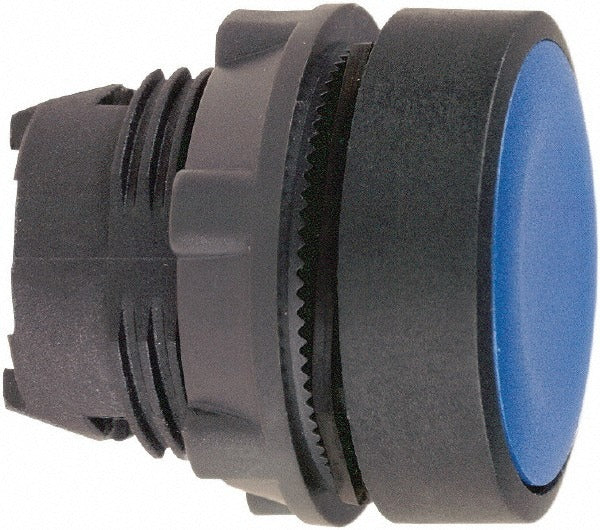

The SCHNEIDER ELECTRIC ZB5AA6 is a non-illuminated, momentary push-button operator designed for industrial and commercial control panel applications. Featuring a flush-style, round blue plastic button and a 22 mm mounting hole diameter, this operator fits standard 22 mm cutouts common across industrial enclosures. It carries a NEMA 4X and 13 rating, making it suitable for use in environments requiring resistance to dust, oil, and water ingress. Licensed electricians and panel builders install this type of operator as part of motor control, automation, and machine safety circuits. It is a single-unit component intended for direct panel mounting.

The ZB5AA6 is suited for light industrial and commercial control panel applications where a momentary contact operator is required. Typical installations include motor starters, relay control panels, conveyor systems, and general-purpose machine control enclosures. The blue button color is commonly used to indicate specific functions such as start, acknowledge, or process initiation per control system conventions. This operator is intended for use within assembled control stations that accept 22 mm component bodies.

Key Features

• 22 mm mounting hole diameter fits standard industrial panel cutouts
• Momentary operation returns to default position on release
• Flush-style round blue plastic button for positive tactile identification
• Non-illuminated design simplifies wiring and reduces component count
• NEMA 4X and 13 rated for dust-tight and oil-tight enclosure compatibility
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style replacement operator for 22 mm push-button control stations accepting flush round operators. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify zero voltage with a meter before removing or installing any push-button operator. Confirm the panel enclosure NEMA rating matches the application environment before mounting. Do not exceed the contact block ratings specified for the assembled control station this operator is fitted to.
