Schneider Electric ZB4BX84 Trigger Action Push-button Switch

Product Description

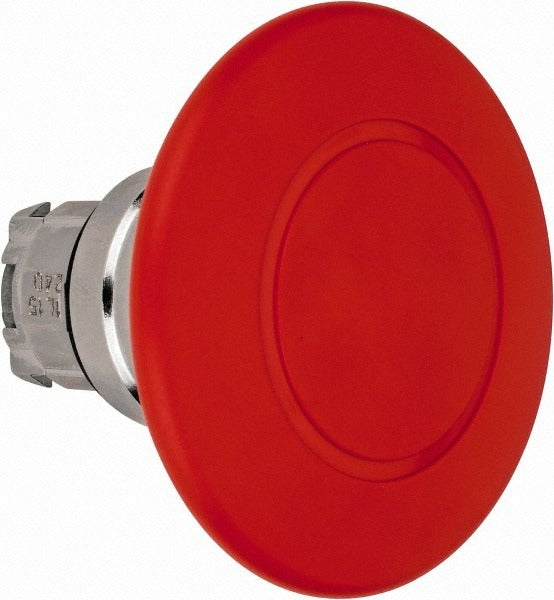

The Schneider Electric ZB4BX84 is a trigger action push-button switch designed for industrial control panel and machine control applications. It features a red, round, extended mushroom-head operator that is non-illuminated and configured for On-Off switching. The trigger action mechanism provides a positive, deliberate actuation feel, making it suitable for emergency stop or process control functions where unintended activation must be minimized. Terminals are screw-clamp type, ensuring a secure and reliable electrical connection. The unit weighs 0.19 pounds and has a compact footprint of 2.8 inches by 2.8 inches with a height of 3.4 inches.

The ZB4BX84 is used in industrial and commercial control panels, machine operator stations, and process equipment enclosures. The mushroom-head profile improves visibility and target area on a crowded panel face. Electricians and industrial control technicians install this switch in applications requiring a simple On-Off trigger-action control point. It is suited for both new panel builds and replacement of worn or failed push-button operators in existing assemblies.

Key Features

• Trigger action operation for deliberate, positive actuation
• Red, round, extended mushroom-head operator for high visibility
• Non-illuminated design simplifies wiring and reduces component count
• Screw-clamp terminals for secure field wiring connections
• On-Off switch sequence suitable for start-stop and process control circuits
• Compact body: 2.8 inches wide by 2.8 inches deep by 3.4 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for industrial control panels and machine operator stations requiring a trigger action, mushroom-head, non-illuminated On-Off switch.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial control technician. De-energize the control panel and lock out or tag out all power sources before removing or installing any push-button operator. Confirm that the panel cutout diameter matches the mounting requirements of the ZB4BX84 before installation. Screw-clamp terminal connections should be tightened to the panel manufacturer specifications and verified for continuity after installation.
