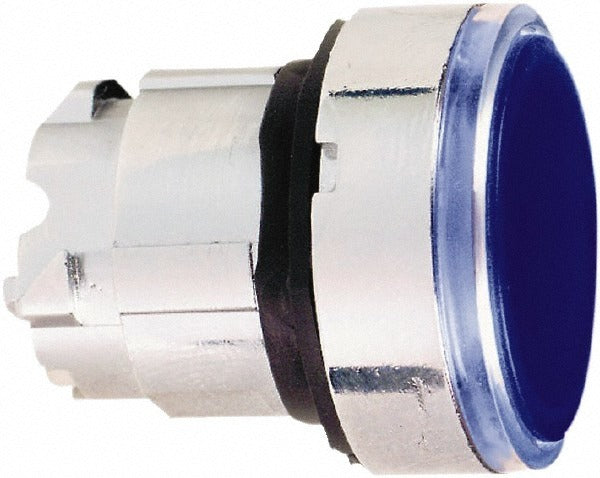

Schneider Electric ZB4BW36 Push-button Switch 22mm Blue

Product Description

The SCHNEIDER ELECTRIC ZB4BW36 is a momentary, nonilluminated push-button switch designed for industrial control panel applications. It features a flush-style, round blue metal operator with a 22 mm mounting hole diameter. The momentary (MO) action means the switch activates only while depressed and returns to its default state upon release. Rated NEMA 4X and NEMA 13, it is built for environments where dust, oil, and water resistance are required. Electricians and control panel builders working on machinery, automation systems, and process equipment are the primary installers of this device.

The ZB4BW36 is suited for industrial control panels in manufacturing, process automation, and machine control applications. Its NEMA 4X rating makes it appropriate for washdown or wet environments in addition to standard indoor use. The flush button profile reduces the risk of accidental actuation, making it a practical choice for panels where inadvertent triggering is a concern. It is typically wired as a discrete input to a relay, PLC, or motor starter circuit in both light commercial and heavy industrial settings.

Key Features

• Momentary (MO) operation — activates only while depressed, returns to default on release
• Flush-style round blue metal operator reduces accidental actuation risk
• 22 mm mounting hole diameter fits standard 22 mm panel cutouts
• NEMA 4X and NEMA 13 rated for dust, oil, and water-resistant enclosure compatibility
• Nonilluminated operator — no integral lamp or LED required
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 22 mm industrial control panel assemblies requiring a flush, momentary, nonilluminated blue operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 430 and the panel manufacturer guidelines. De-energize and lock out the control panel before mounting or wiring this switch. The 22 mm panel cutout should be clean and deburred before inserting the operator body. Verify that all contact block accessories are properly seated and torqued per the contact block manufacturer specifications before restoring power.
