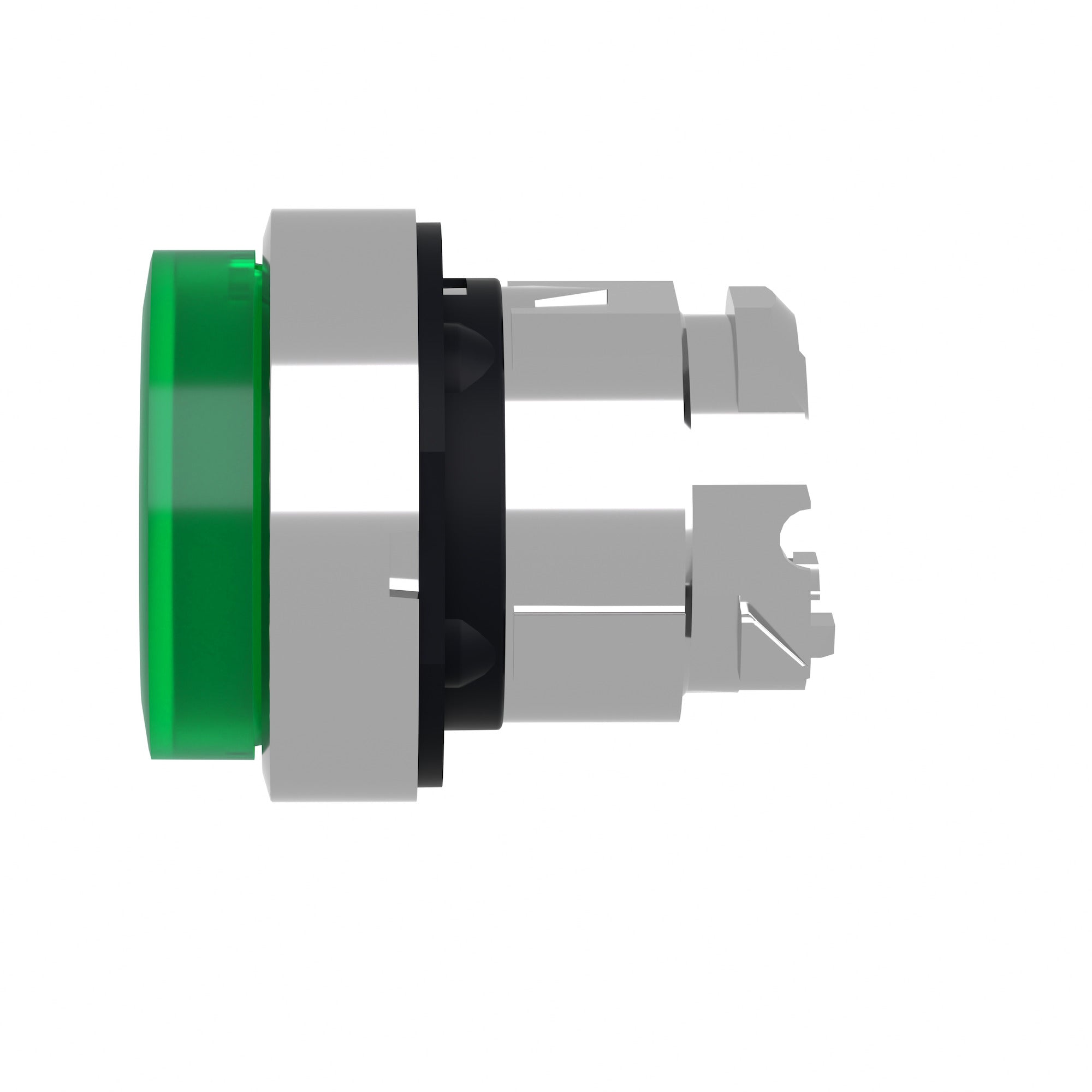

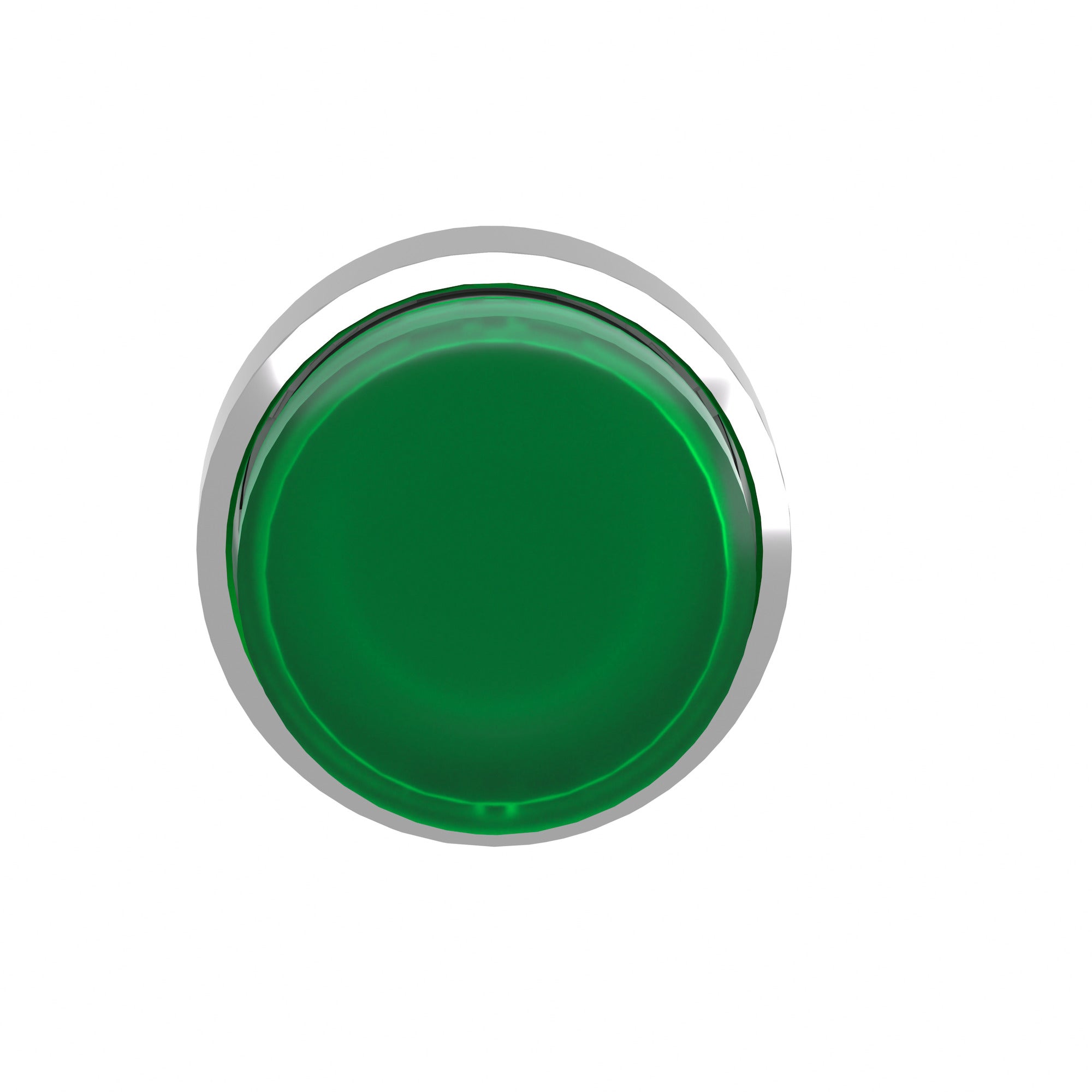

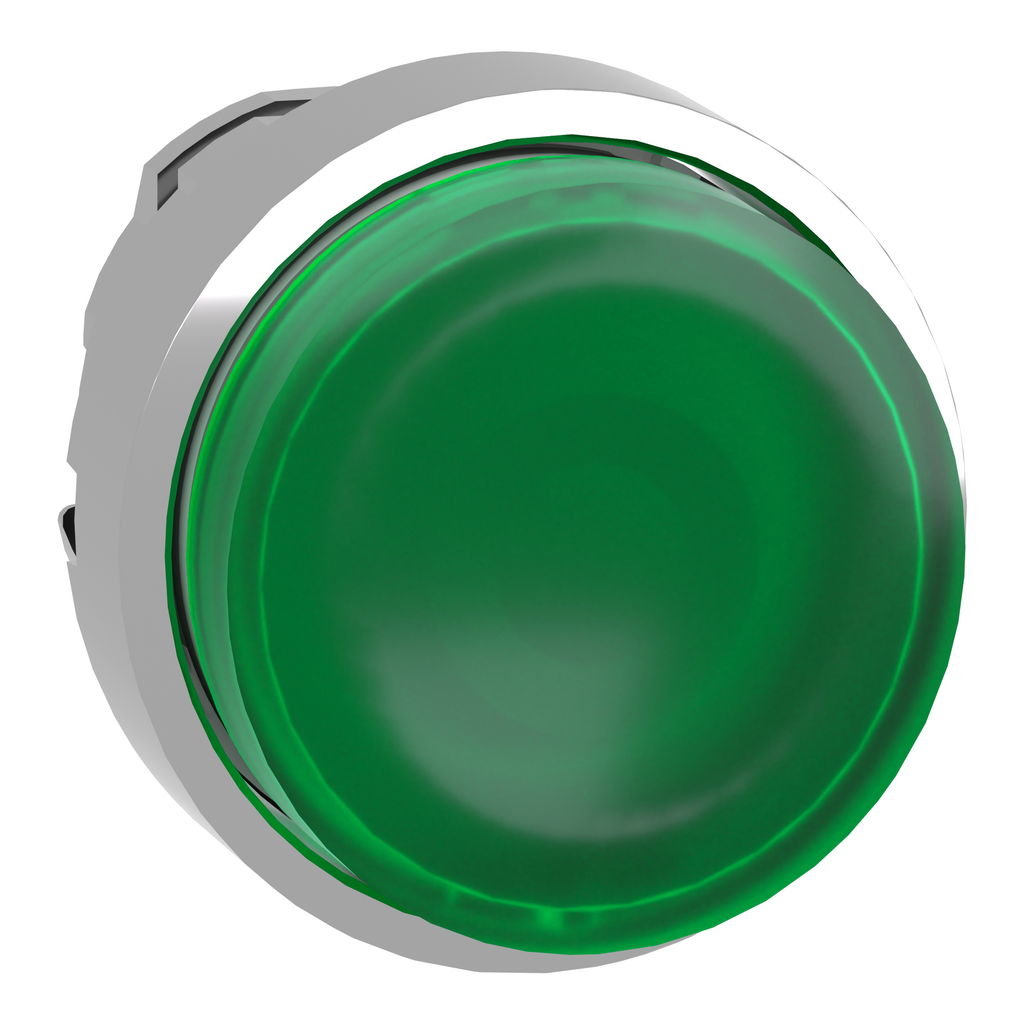

Schneider Electric ZB4BW133 Square D 22 mm Green Round Extended Momentary Illuminated Push Button Operator

Product Description

The Schneider Electric ZB4BW133 is a 22 mm round illuminated push button operator. This unit utilizes a spring return mechanism to provide reliable control for various applications. It is compatible with universal LED technology, making it ideal for machine operation interfaces.

• Impact, dust, water, and vibration resistant with IP66 rating
• Designed for easy installation with snap-fit assembly
• Wide operating temperature range from minus forty to seventy degrees Celsius

Product Highlights

The ZB4BW133 offers high brightness for clear visibility and operation, even in bright conditions, helping to minimize operation errors.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ZB4BW133

Technical Specifications

• Type: Head for illuminated push-button
• Width: 29 mm
• Height: 29 mm
• Weight: 0.06 lb
• Operating Temperature: -40 to 70 degrees Celsius
• Indicator Color: Green
• Bezel Material: Chromium Plated Metal
• Warranty Length: 18 months
