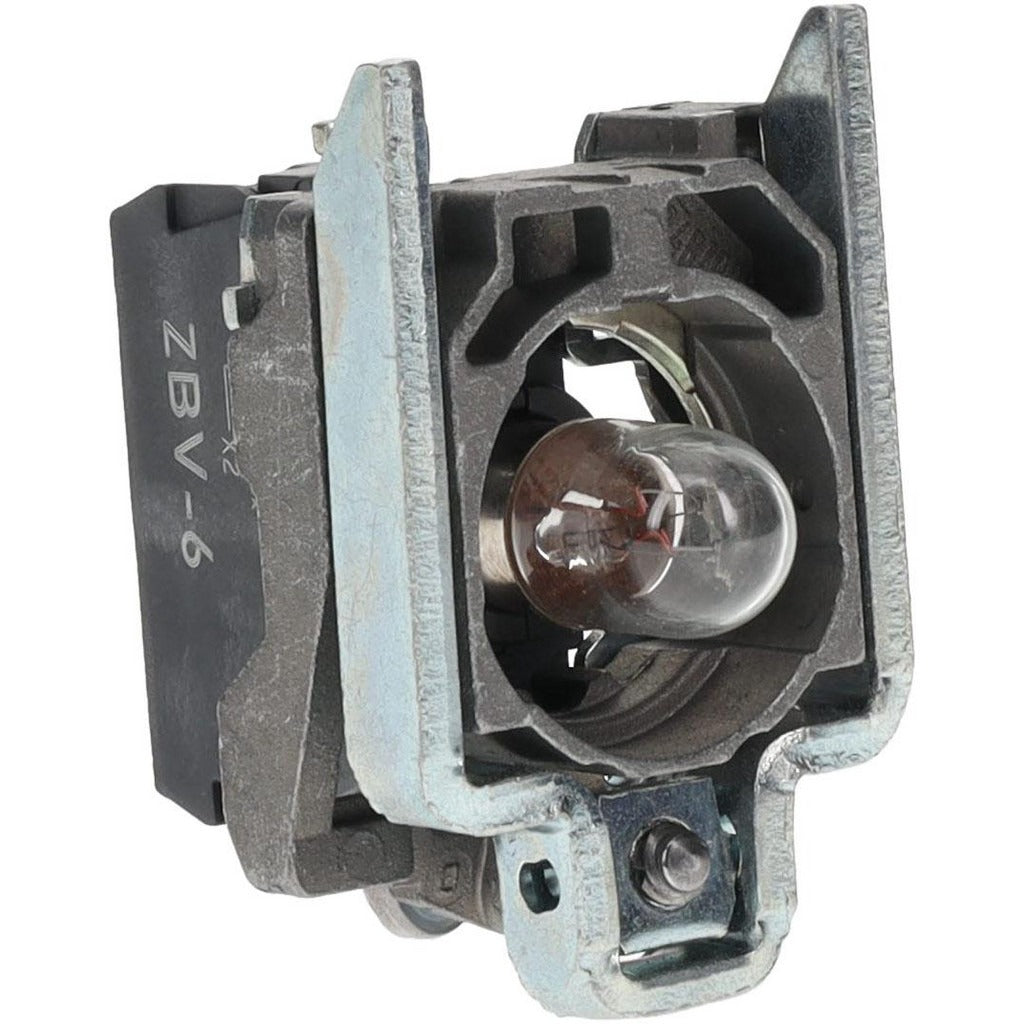

Schneider Electric ZB4BV624 Indicating Light 24V 22mm

Product Description

The SCHNEIDER ELECTRIC ZB4BV624 is a 24-volt pilot indicating light designed for industrial and commercial control panel applications. It uses a screw connector for secure electrical termination and mounts into a standard 22mm panel cutout. The unit measures 2.3 inches in length, 1.7 inches in width, and 1.3 inches in height, making it a compact fit for densely populated control enclosures. Licensed electricians and control panel builders install this component as a status indicator for machine or process control circuits. At 0.1 pounds, it adds minimal weight to any panel assembly.

This indicating light is suited for use in low-voltage control circuits operating at 24 volts, common in industrial automation, HVAC control panels, motor control centers, and process equipment. The 22mm mounting format is a widely adopted standard in control panel construction, making this light compatible with most 22mm cutout enclosures and operator interface assemblies. It is appropriate for both new panel builds and field replacements where a 24-volt screw-terminal indicator is required.

Key Features

• Operates at 24 volts for standard low-voltage control circuit applications
• Screw connector termination provides secure, tool-assisted wire attachment
• 22mm panel cutout diameter fits widely used control enclosure standards
• Compact form factor at 2.3 x 1.7 x 1.3 inches for tight panel layouts
• Lightweight at 0.1 pounds for minimal impact on panel weight budgets

Compatibility

Designed as an OEM-style replacement or new-install indicating light for control panels using standard 22mm cutout operator interface components operating at 24 volts.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize the control panel and verify zero voltage at the installation point before handling any wiring or mounting hardware. The screw connector terminals should be tightened with an appropriate flat-blade screwdriver to ensure a reliable connection. Follow applicable NEC guidelines for low-voltage control wiring and enclosure requirements.
