Schneider Electric ZB4BV07 Clear Round Lens Pilot Light

Product Description

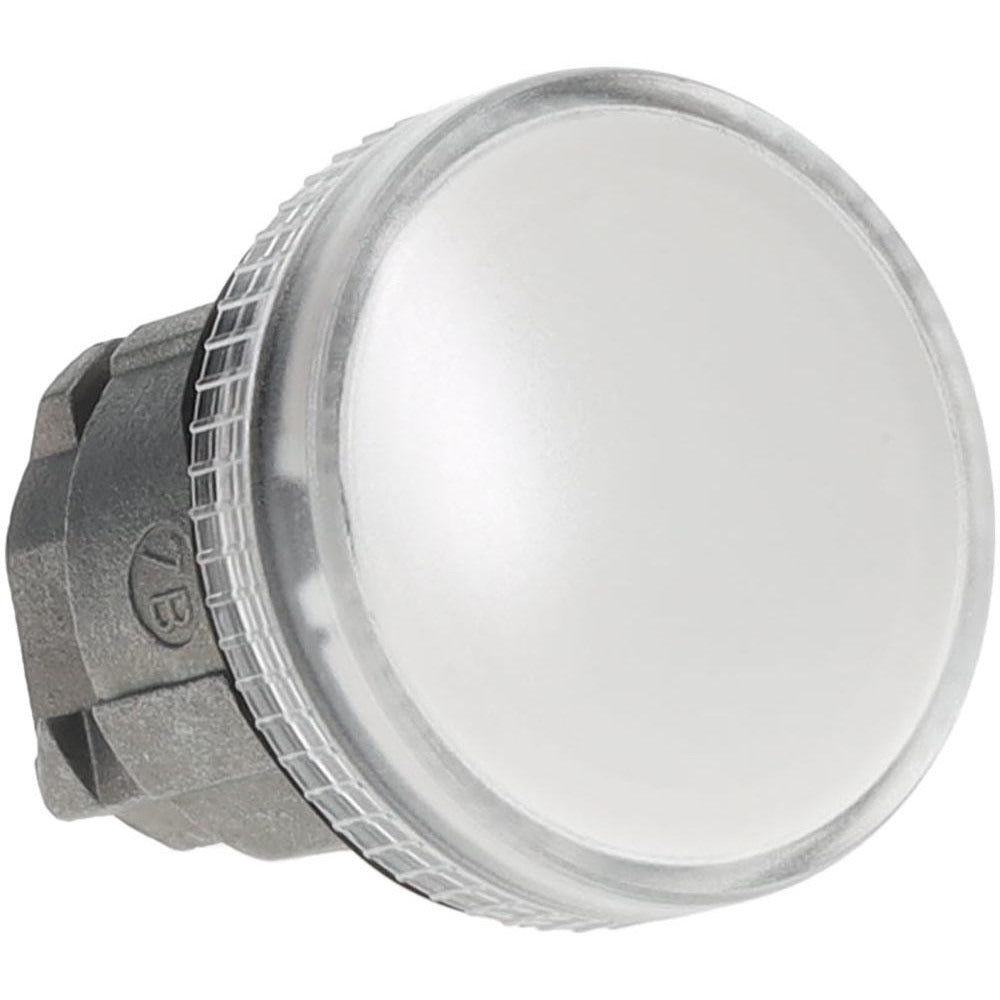

The SCHNEIDER ELECTRIC ZB4BV07 is a clear, round-lens pilot light designed for industrial control panel applications. It mounts through a 22mm panel cutout and serves as a visual indicator in machine control, automation, and process equipment enclosures. The lens is constructed to withstand shock, vibration, and water exposure, making it suitable for demanding plant-floor environments. Electricians and control panel builders install this indicator as part of operator interface assemblies. At 0.04 pounds, it is a compact, lightweight component intended as a direct replacement or new-installation pilot light within 22mm-format control stations.

This pilot light fits standard 22mm panel cutout configurations common in industrial and commercial control panel builds. It is well-suited for use in NEMA 4X-rated enclosures where moisture and washdown resistance are required. Typical applications include machine tool control panels, conveyor systems, pump control stations, and process automation equipment. The clear lens allows the lamp color behind it to read through without filtering, making it useful where the indicator bulb or LED module determines the visible signal color. Installation is performed by licensed electricians or qualified control panel assemblers following applicable electrical codes.

Key Features

• 22mm panel cutout diameter for compatibility with standard 22mm control station components
• Round clear lens passes lamp or LED color through without tinting
• Shock-resistant and vibration-resistant construction for industrial environments
• Water-resistant design supports use in NEMA 4X rated enclosures
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, NEMA 4X, and EN/IEC 60947-5-1
• Compact and lightweight at 0.04 pounds

Compatibility

Designed as a replacement or new-installation clear lens pilot light for 22mm-format control panel indicator assemblies meeting NEMA 4X and IEC 60947-5-1 requirements.

Installation Notes

This pilot light is installed by a licensed electrician or qualified control panel assembler. De-energize and lock out the control panel before beginning any installation or replacement work, following NFPA 70E lockout/tagout procedures. The unit mounts through a standard 22mm panel cutout; verify the enclosure knockout or drilled hole matches this diameter before installation. Torque the mounting hardware to the enclosure manufacturer's specified value and confirm the lens assembly is fully seated and sealed before restoring power.
