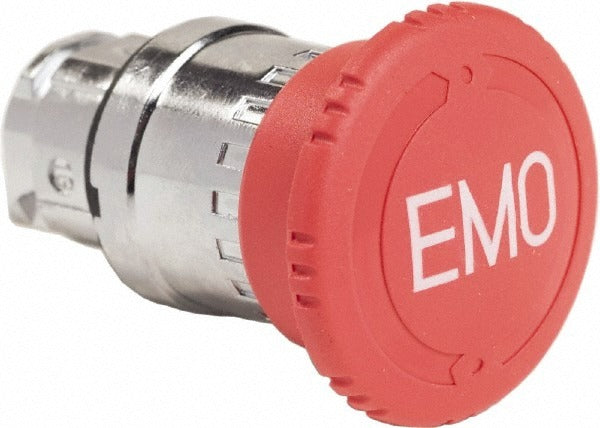

Schneider Electric ZB4BS84430 Mushroom Head Pushbutton Head

Product Description

The SCHNEIDER ELECTRIC ZB4BS84430 is an extended mushroom head pushbutton switch head designed for use with XB4 operator assemblies and emergency stop operators. The head features a round, red, nonilluminated button profile that provides a high-visibility target surface for emergency stop or control station applications. At 2.3 inches in length and 1.3 inches in both height and width, the extended mushroom profile extends the actuating surface beyond a standard flush or extended button, improving operator reach and response. Licensed electricians and industrial controls technicians install this component as part of a larger pushbutton operator assembly in control panels and machine guarding circuits.

This pushbutton head is suited for industrial control panel applications where a red mushroom head actuator is required at an operator station. It is commonly installed in machine tool panels, conveyor control stations, and light industrial automation cabinets. The red color is standard for emergency stop or halt functions in many control circuit configurations. This is a replacement or retrofit head for existing XB4 operator bases already mounted in a panel cutout.

Key Features

• Extended mushroom head profile increases actuating surface area for faster operator response
• Round red button — standard color coding for stop or emergency functions in control circuits
• Nonilluminated design simplifies wiring and reduces component count
• Compatible with XB4 operators and emergency stop operator bases
• Compact dimensions: 2.3 inches length, 1.3 inches height, 1.3 inches width

Compatibility

Designed for use with Schneider Electric XB4 Operators and Emergency Stop Operators as stated by the manufacturer. Consult the XB4 series documentation to confirm fitment with the specific operator base installed in the panel.

Installation Notes

Installation is typically performed by a licensed electrician or qualified controls technician. De-energize the control panel and follow lockout/tagout procedures before removing or installing any pushbutton head or operator component. Verify that the replacement head is fully seated and secured to the operator base before restoring power. Local electrical codes and the NEC should be consulted for control panel wiring and enclosure requirements.
