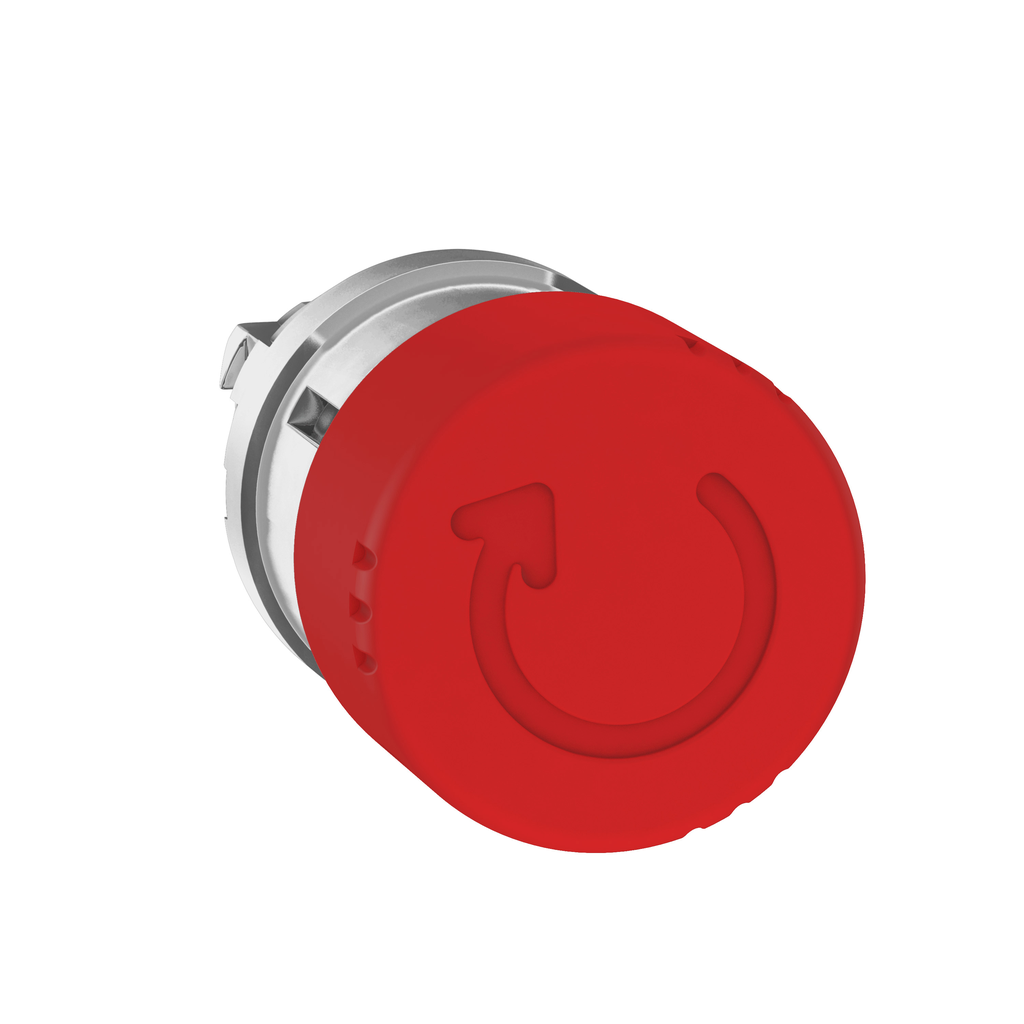

Schneider Electric ZB4BS834 Mushroom Push Button Operator Power 30mm Replacement MPN

Product Description

The Schneider Electric ZB4BS834 is a mushroom push button operator designed for emergency stop and shutdown applications. This product features a latched turn-to-release mechanism, allowing for a clear and ergonomic interface to control machines effectively. It is suitable for installation on compatible emergency stop systems and is visible from a distance due to its prominent 30mm mushroom shape.

• Impact resistant, dust and water resistant with IP66 rating.
• Fits standard 22mm cutouts, ensuring compatibility with existing installations.
• Operates in a wide temperature range from negative forty degrees Celsius to seventy degrees Celsius.

Product Highlights

The ZB4BS834 offers high durability with its metal bezel and is designed for environments with high impact or vibration.

Product Information

Standard Information

• Catalog Number: ZB4BS834
• Brand: Schneider Electric

Technical Specifications

• Weight: 0.15 lb
• Height: 30 mm
• Width: 30 mm
• Action: Maintained - Trigger Action Turn-to-Release
• Standard: CSA C22.2 No 14, UL 508, IEC standards
• Operating Temperature: -40 to 70 degrees Celsius
• Enclosure Rating: NEMA 1/2/3/4/4X/13
• Country of Origin: Czech Republic
