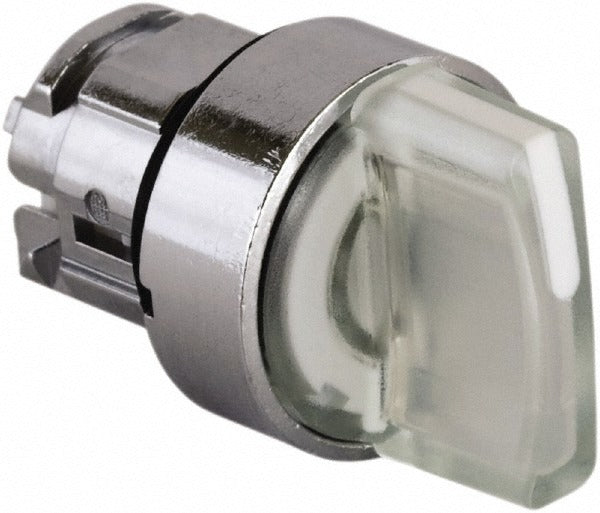

Schneider Electric ZB4BK1513 3-position Selector Switch

Product Description

The SCHNEIDER ELECTRIC ZB4BK1513 is a 3-position momentary selector switch designed for industrial control panel applications. It features a white handle operator mounted in a round, metal-bezel head with a 22mm panel cutout diameter. The momentary (MO) action returns the handle to center after each operation, making it suitable for jogging, inching, or multi-directional control circuits. Rated IP69K, the switch resists high-pressure washdowns, shock, vibration, and water ingress. It is installed by licensed electricians and industrial control panel builders working to UL 508 and related standards.

The ZB4BK1513 fits standard 22mm cutout control panels in industrial, marine, and heavy-duty commercial environments. Its IP69K and NEMA 4X ratings make it appropriate for food processing, washdown areas, chemical plants, marine vessels, and outdoor enclosures where moisture and contamination are concerns. The momentary 3-position configuration supports applications such as forward-stop-reverse motor control, left-center-right directional commands, or similar multi-state switching tasks where maintained contact is not required.

Key Features

• 3-position momentary (MO) action returns to center on release
• White handle operator for visual differentiation on multi-switch panels
• 22mm round head with metal bezel for durable panel mounting
• IP69K ingress protection rating — shock-resistant, vibration-resistant, and water-resistant
• NEMA 13 and 4X rated for use in washdown and corrosive environments
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple additional international standards

Compatibility

Designed as an OEM-style operator head for standard 22mm industrial control panel switch assemblies rated for momentary 3-position operation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. The 22mm panel cutout must be clean and free of burrs to ensure proper sealing and IP69K performance. Do not exceed the rated environmental and electrical parameters specified by the manufacturer.
