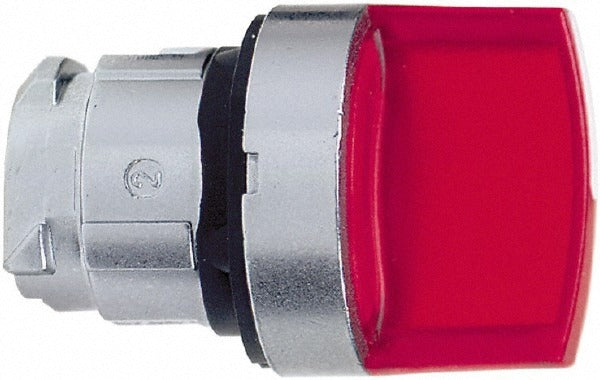

Schneider Electric ZB4BK1343 Selector Switch 3 Position

Product Description

The Schneider Electric ZB4BK1343 is a 3-position maintained selector switch operator designed for industrial control panel applications. Featuring a red round handle with metal bezel construction, this unit mounts in a 22 mm panel cutout and delivers NEMA 4X and NEMA 13 ingress protection along with an IP69K rating. The maintained action holds its selected position until manually moved, making it suited for mode-selection and multi-step switching functions. It carries UL 508 listing and meets a broad set of international standards including EN/IEC 60947-5-1 and CSA C22.2 No. 14, supporting use across North American and global installations.

This selector switch operator is used in industrial and commercial control panel builds where a durable, corrosion-resistant switching element is required. The IP69K and NEMA 4X ratings make it appropriate for washdown environments, food processing facilities, marine installations, and other demanding plant-floor settings. The illuminated red handle provides clear visual indication of switch state. Licensed electricians and panel builders typically specify this component in new builds and retrofit panel upgrades where multi-position control is needed.

Key Features

• 3-position maintained action holds switch state without continuous operator input
• IP69K and NEMA 4X and 13 ratings provide washdown and dust-tight protection
• 22 mm mounting hole diameter fits standard 22 mm control panel cutouts
• Illuminated red round handle with metal bezel for clear visual feedback
• Shock-resistant, vibration-resistant, and water-resistant construction
• UL Listed to UL 508 with additional CSA, DNV, GL, RINA, and IEC certifications

Compatibility

Designed as an OEM-style selector switch operator for standard 22 mm industrial control panel assemblies. Consult Schneider Electric documentation to confirm contact block and legend plate compatibility before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify the absence of voltage before mounting or wiring this component. A 22 mm hole saw or punch is required for panel cutout preparation. Do not exceed the contact block ratings specified in the manufacturer documentation when wiring downstream loads.
