Schneider Electric ZB4BK1263 Selector Switch 22mm

Product Description

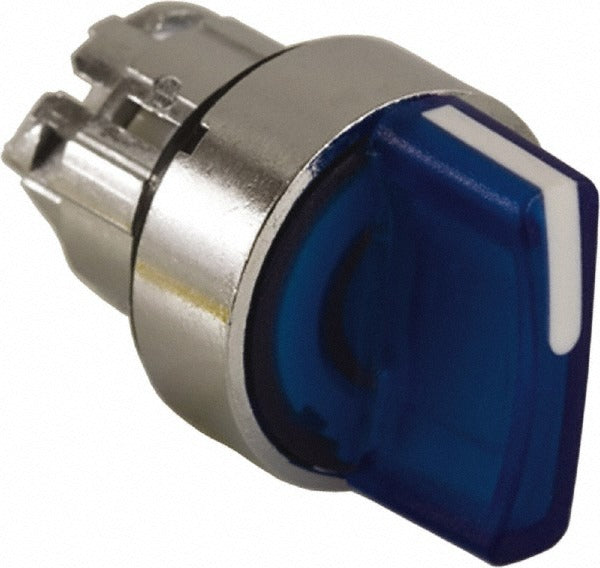

The SCHNEIDER ELECTRIC ZB4BK1263 is a 2-position maintained-action selector switch operator designed for industrial control panel applications. Featuring a blue handle and a round metal bezel, this unit mounts through a 22 mm panel cutout. The maintained (MA) operation type means the switch stays in whichever position it is moved to until manually returned. It carries an IP69K ingress protection rating, making it suitable for environments subject to high-pressure washdowns, heavy moisture, and contamination. Licensed electricians and industrial controls technicians typically install this operator as part of a larger Harmony XB4 or equivalent push-button assembly.

This selector switch operator is suited for residential, commercial, and industrial control enclosures where reliability under shock, vibration, and water exposure is required. Its NEMA 13 and NEMA 4X ratings make it appropriate for indoor and outdoor enclosures that must resist dust, oil, and water. Typical install scenarios include machine control panels, conveyor systems, pump control stations, and process automation equipment where a durable, clearly color-coded operator is needed to distinguish switch positions at a glance.

Key Features

• 2-position maintained action holds switch state without operator contact
• Blue handle provides clear visual identification in multi-switch panels
• 22 mm round mounting hole fits standard 22 mm panel cutouts
• IP69K rating withstands high-pressure, high-temperature washdowns
• NEMA 13 and NEMA 4X rated for oil-tight and watertight indoor enclosures
• Metal bezel construction with shock-resistant and vibration-resistant design
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style selector switch operator for 22 mm panel cutout assemblies. Specific contact block and body compatibility should be confirmed against the manufacturer documentation before ordering.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the manufacturer wiring diagram. De-energize and lock out the control panel before beginning any work. Ensure the panel cutout measures 22 mm before mounting. Do not over-tighten the mounting nut, as this may crack the bezel or distort the panel.
