Schneider Electric ZB4BK1233 Selector Switch

Product Description

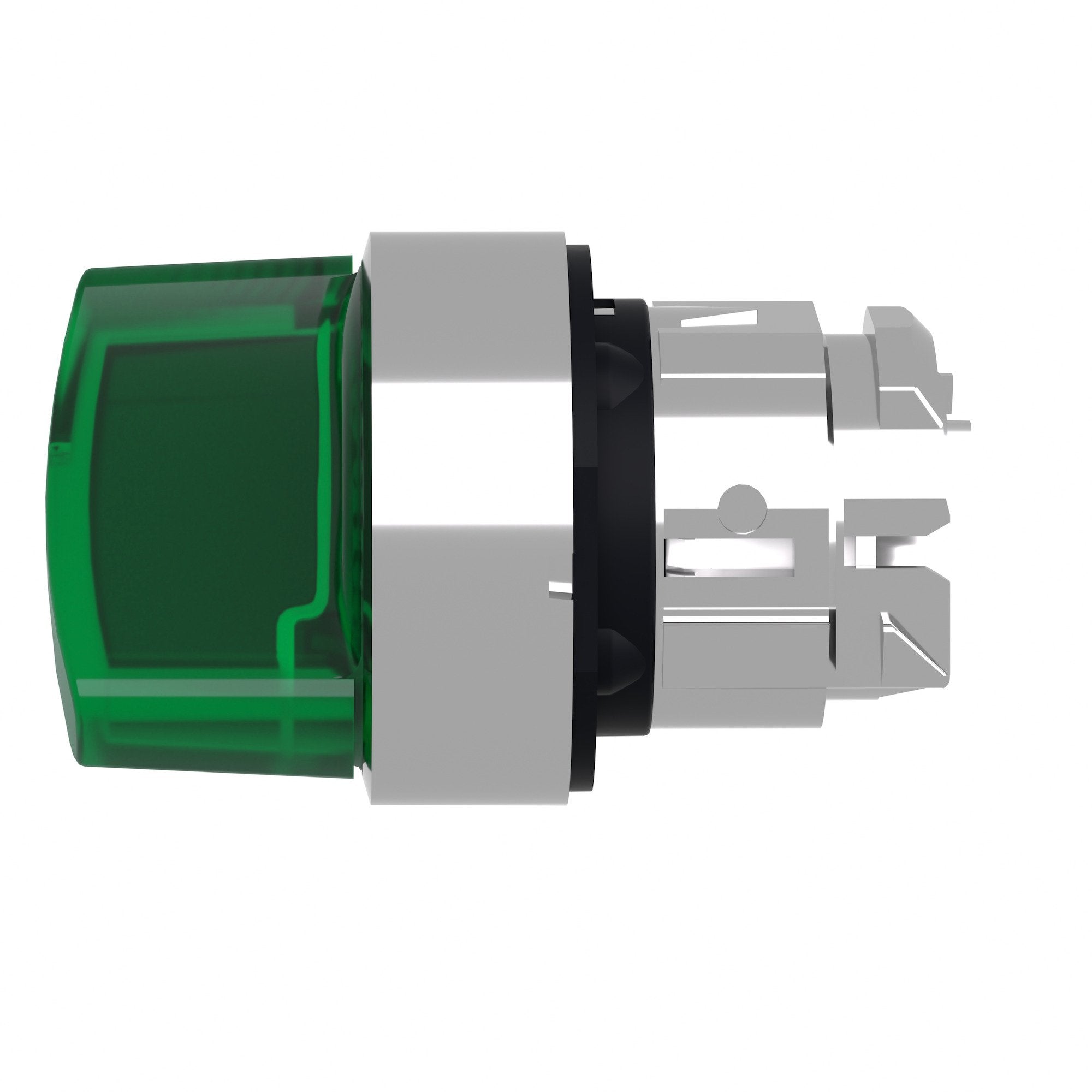

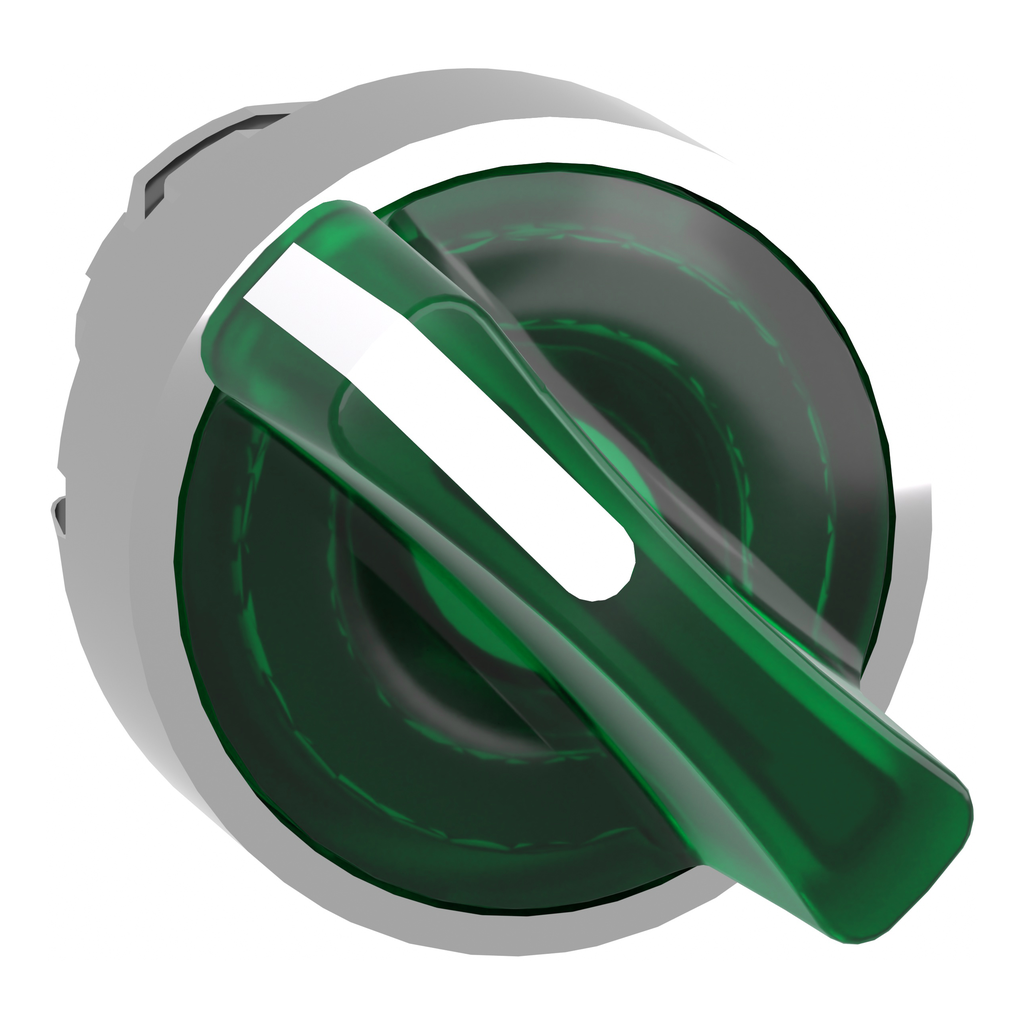

The Schneider Electric ZB4BK1233 Selector Switch is designed for various applications requiring reliable control. This illuminated green selector switch has two positions and operates with a maintained mechanism. The ergonomic handle allows for easy operation and can be installed on compatible selector units. The switch provides clear feedback, even in low-light conditions, ensuring that operators can set machines accurately.

• Impact, dust, water, and vibration resistant (IP69K rated)
• Compatible with 22mm cutouts for easy installation
• Wide operating temperature range from negative forty degrees Celsius to seventy degrees Celsius

Product Highlights

This product is ideal for machine manufacturers and control system builders, particularly in automotive and textile industries. It meets global certifications, including EN/IEC, UL, NEMA, CSA, CCC, and more, ensuring compliance with safety standards.

Product Information

Standard Information

• Catalog Number: ZB4BK1233
• Manufacturer: Schneider Electric

Technical Specifications

• Size: 0.87 inches
• Weight: 0.08 lb
• Height: 29 mm
• Width: 29 mm
• Actuator: 2 positions 90 degrees
• Operating Temperature: -40 to 70 degrees Celsius
• Environmental Conditions: IP 65
• Warranty Length: 18 months
