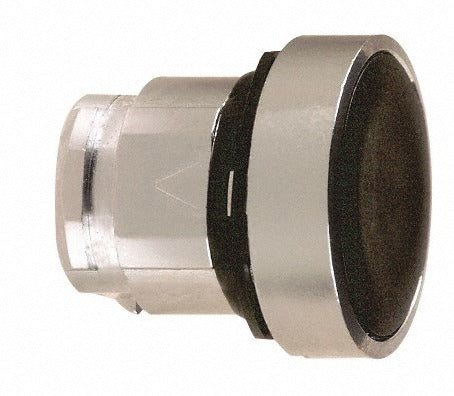

Schneider Electric ZB4BH02 Maintained Push-button Switch

Product Description

The SCHNEIDER ELECTRIC ZB4BH02 is a maintained-action push-button switch designed for industrial control panel applications. It features a flush-style, round black metal pushbutton head with a 22 mm mounting hole diameter, fitting standard 22 mm panel cutouts. The maintained (MA) operation type means the switch holds its actuated state until pressed again, making it suitable for on/off control functions where a latching output is required. Licensed electricians and control panel builders install this component during panel assembly or field service. It carries a NEMA 4X and NEMA 13 rating, confirming resistance to dust, oil, and water ingress in demanding environments.

The ZB4BH02 is used in industrial and commercial control panels where a reliable, panel-mount maintained pushbutton is needed. Typical applications include machine control stations, motor starter panels, and process control enclosures in manufacturing, utilities, and heavy industry. The 22 mm mounting format is a widely adopted standard in industrial controls, making this switch a common specification in new panel builds and retrofit service work. Its metal construction suits environments where plastic actuators would be vulnerable to mechanical damage or chemical exposure.

Key Features

• Maintained (MA) operation holds switch state after each actuation for on/off control functions
• 22 mm mounting hole diameter fits standard industrial panel cutouts
• Flush-style round black metal pushbutton head for durability in harsh environments
• NEMA 4X and NEMA 13 rated for resistance to dust, oil, and water ingress
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and others
• Compact form factor suitable for dense panel layouts

Compatibility

Designed as an OEM-style maintained push-button switch for 22 mm standard industrial control panel cutouts in commercial and industrial applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before removing or installing any push-button components. A standard panel punch or existing 22 mm cutout is required for mounting. Verify the switch operation type and circuit logic before restoring power to the panel.
