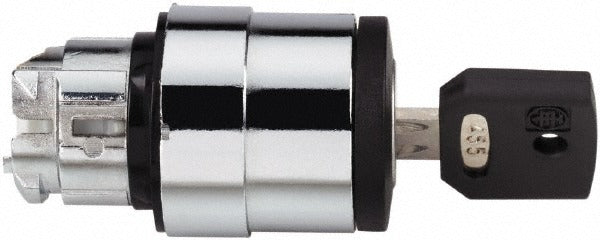

Schneider Electric ZB4BG9 Key Selector Switch 3-pos 22mm

Product Description

The SCHNEIDER ELECTRIC ZB4BG9 is a 3-position, maintained-action key selector switch operator designed for industrial control panel applications. The black key operator sits in a round, metal bezel head and mounts through a 22 mm panel cutout. It features IP69K ingress protection, making it suitable for environments that demand washdown resistance, shock tolerance, and vibration resistance. The non-illuminated head ships as the operator body only and pairs with compatible contact blocks or body assemblies for a complete switching unit. Licensed electricians and panel builders are the primary installers of this component.

This key selector switch is built for demanding industrial and commercial settings where positive, tamper-resistant control is required. The 3-position maintained configuration means the switch holds its selected position without spring return, giving operators consistent mode selection. Typical applications include machine tool panels, pump control stations, process equipment, and any control enclosure rated NEMA 13 or NEMA 4X where liquid ingress and particulate contamination are concerns. The black key removes only in the left position, providing a built-in lockout feature during normal operation.

Key Features

• 3-position maintained action holds switch position without operator input
• Key removal in left position only for built-in lockout capability
• IP69K ingress protection rated for high-pressure washdown environments
• NEMA 13 and NEMA 4X rated metal bezel head
• 22 mm panel cutout for compatibility with standard 22 mm mounting holes
• Shock-resistant and vibration-resistant construction for industrial environments
• Non-illuminated round head with metal bezel

Compatibility

Designed as an OEM-style operator head for 22 mm selector switch assemblies within the Schneider Electric ZB4 platform. Specific compatible contact blocks and body assemblies were not identified in available product data — consult Schneider Electric documentation to confirm correct mating components before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before mounting or wiring any switch operator. The ZB4BG9 is the operator head only and requires a separate contact block assembly to form a complete switching circuit — verify the full assembly configuration before installation. Ensure the panel cutout is 22 mm and the enclosure rating meets or exceeds the application environment rating.
