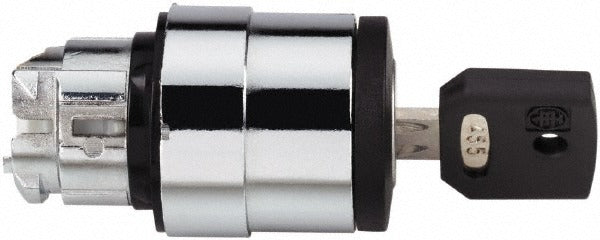

Schneider Electric ZB4BG8 3-position Key Selector Switch

Product Description

The SCHNEIDER ELECTRIC ZB4BG8 is a 3-position momentary key selector switch designed for industrial control panel applications. The operator accepts a black key and returns to center upon key removal, making it well suited for momentary control sequences where unintended activation must be prevented. The round head fits a standard 22mm panel cutout and features a metal bezel with IP69K ingress protection, meaning it can handle high-pressure wash-down environments without allowing water intrusion. Non-illuminated and shock-resistant, vibration-resistant, and water-resistant by design, this switch is installed by licensed electricians and automation technicians in demanding industrial and commercial settings.

The ZB4BG8 is used in industrial control panels, machine tool enclosures, food and beverage processing equipment, and marine or outdoor installations where resistance to moisture, vibration, and shock is required. Its NEMA 13 and NEMA 4X ratings make it appropriate for both oil-tight indoor environments and corrosion-resistant outdoor or wash-down enclosures. The momentary operation type means the switch does not latch in either of the two outer positions, returning to center when the key is released. This behavior is commonly specified in safety-sensitive or sequenced control circuits.

Key Features

• 3-position momentary operation with key removal at center position
• 22mm round-head mounting fits standard industrial panel cutouts
• IP69K ingress protection rated for high-pressure wash-down service
• NEMA 13 and NEMA 4X enclosure compatibility for oil-tight and corrosion-resistant installations
• Metal bezel construction with shock-resistant and vibration-resistant design
• Listed to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style operator head for 22mm industrial control station assemblies requiring a 3-position momentary key switch with NEMA 4X and IP69K ratings.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before removing or installing any switch operator. Verify that the panel cutout diameter matches the 22mm mounting requirement before installation. Do not force the key operator into a misaligned cutout, as this can damage the bezel or contact block alignment.
