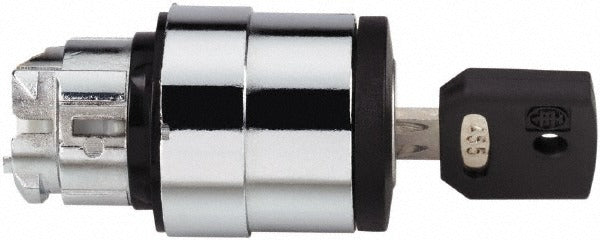

Schneider Electric ZB4BG214 Key Selector Switch 2-position

Product Description

The SCHNEIDER ELECTRIC ZB4BG214 is a 2-position maintained-action key selector switch designed for industrial control panel applications. It features a round, non-illuminated metal bezel head with a black key operator and a 22 mm panel cutout diameter. The key can be removed in the left position, providing a lockout function that prevents unauthorized or unintended operation. With an IP69K ingress protection rating and shock-resistant, vibration-resistant, and water-resistant construction, this switch is built for demanding environments. It is installed by licensed electricians and industrial control technicians.

This selector switch is intended for use in industrial and commercial control panels where maintained two-position switching is required. The maintained-action (MA) operation holds the selected position without spring return, making it suitable for machine control, motor starter circuits, and similar applications. Its NEMA 4X and NEMA 13 ratings make it appropriate for wash-down environments, outdoor enclosures, and areas exposed to dust, oil, or coolant. The metal bezel and robust construction support installation in high-cycle or harsh-duty scenarios where standard plastic-head switches would not hold up.

Key Features

• 2-position maintained-action (MA) operation holds selected position without spring return
• Black key operator with key removal in the left position for lockout capability
• 22 mm round mounting hole diameter fits standard 22 mm panel cutouts
• IP69K ingress protection rating with NEMA 4X and NEMA 13 enclosure compatibility
• Shock-resistant, vibration-resistant, and water-resistant construction for harsh-duty use
• Metal bezel with non-illuminated head for straightforward panel integration

Compatibility

Designed as an OEM-style replacement or new-installation operator head for standard 22 mm selector switch assemblies in industrial control panels rated for NEMA 4X or NEMA 13 environments.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. The 22 mm panel cutout must be clean and free of burrs to ensure proper seating of the metal bezel and to maintain the IP69K seal rating. Do not exceed the contact ratings specified on the contact block attached to this operator head.
