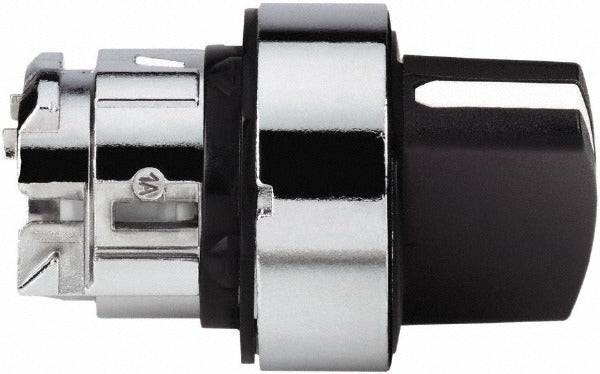

Schneider Electric ZB4BD8 Selector Switch 3 Position 22mm

Product Description

The SCHNEIDER ELECTRIC ZB4BD8 is a 3-position momentary selector switch operator designed for industrial control panel applications. The switch features a non-illuminated black handle, a round head with a metal bezel, and a 22mm panel cutout diameter. It carries an IP69K ingress protection rating, making it suitable for environments that demand resistance to high-pressure washdowns, shock, vibration, and water intrusion. The NEMA 13 and 4X ratings confirm its ability to handle oil, dust, and corrosive conditions. Licensed electricians and panel builders typically specify and install this type of component in machine control and process automation panels.

The ZB4BD8 is intended for use in industrial and commercial control panels where a momentary, three-position selector is required. Typical applications include motor control circuits, machine tool controls, and process equipment requiring left-center-right momentary switching action. Its IP69K and NEMA 4X ratings make it well suited for food processing, washdown, and marine environments where panel components face demanding ingress challenges. The metal bezel and robust construction meet the durability requirements of continuous-duty industrial installations.

Key Features

• 3-position momentary operation for left, center, and right switching states
• 22mm round panel cutout fits standard industrial enclosure knockouts
• IP69K ingress protection rating for high-pressure, high-temperature washdown resistance
• NEMA 13 and 4X rated for oil-tight and corrosion-resistant service
• Non-illuminated black handle with metal bezel for durability in harsh environments
• Shock-resistant and vibration-resistant construction for demanding machine applications
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style 22mm selector switch operator compatible with standard 22mm modular control station assemblies requiring a 3-position momentary handle operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local electrical codes. De-energize and lockout/tagout the control panel before installing or replacing selector switch components. Ensure the panel cutout is 22mm and that the mounting surface thickness is within the specified range for the product series before securing the operator. Do not apply excessive force when threading the mounting nut, as overtightening can crack the bezel or distort the panel cutout seal.
