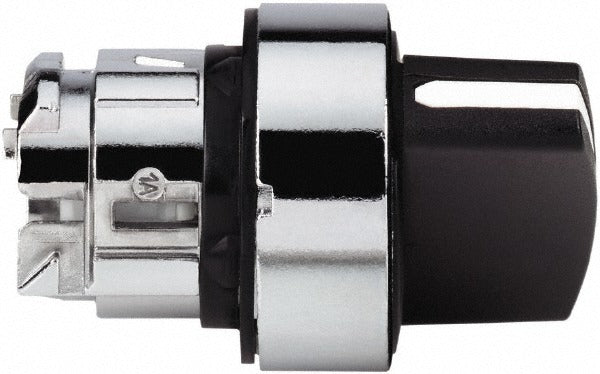

Schneider Electric ZB4BD7 3-position Selector Switch

Product Description

The SCHNEIDER ELECTRIC ZB4BD7 is a 3-position momentary selector switch designed for industrial control panel applications. It features a black, non-illuminated round handle with a metal bezel and a 22 mm mounting hole diameter. The switch carries an IP69K ingress protection rating, making it suitable for environments exposed to high-pressure washdowns, moisture, and contaminants. It is shock-resistant and vibration-resistant, meeting the demands of heavy-duty industrial settings. Licensed electricians and control panel integrators are the primary installers of this component in machine control and automation enclosures.

This selector switch is used in industrial and commercial control panels where a momentary 3-position switching action is required. Typical applications include machine tool controls, conveyor systems, process equipment, and other automation installations that require a center-off or momentary-contact switching configuration. Its NEMA 4X and NEMA 13 ratings make it appropriate for indoor and outdoor enclosures subject to dust, oil, and water ingress. The IP69K rating further qualifies it for food and beverage processing or other washdown environments.

Key Features

• 3-position momentary operator for momentary-contact switching applications
• IP69K ingress protection rating — suitable for high-pressure washdown environments
• NEMA 13 and NEMA 4X rated for resistance to dust, oil, and water
• Metal bezel with round head profile and 22 mm panel cutout diameter
• Shock-resistant and vibration-resistant construction for industrial environments
• Listed to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple international standards

Compatibility

Designed as an OEM-style operator head for 22 mm selector switch assemblies used in industrial control panel enclosures rated NEMA 4X or NEMA 13.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing any switch operator. Verify the 22 mm panel cutout diameter before installation and ensure the enclosure rating is compatible with the application environment. Do not exceed the contact block ratings specified for the assembled switch unit.
