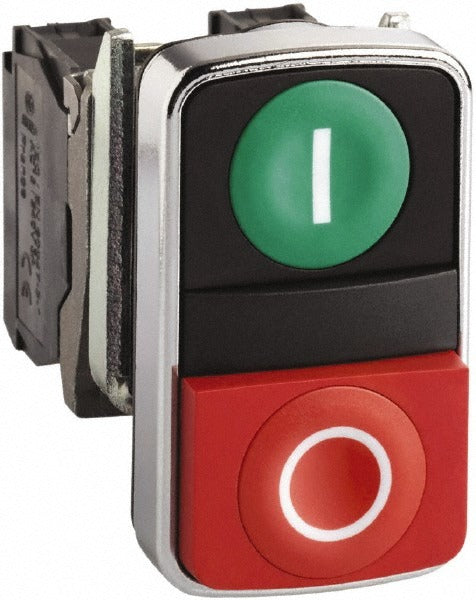

Schneider Electric ZB4BA7341 Push-button Switch 22mm

Product Description

The SCHNEIDER ELECTRIC ZB4BA7341 is a 22 mm mounting hole, momentary push-button switch designed for industrial control panel applications. It features a flush-style, rectangle-shaped operator with both green and red pushbuttons, a chromium-plated metal bezel, and nonilluminated actuation. The switch operates in an On-Off momentary sequence and is built to resist shock and vibration, making it suitable for demanding environments. Electricians and panel builders install this switch in machine control stations, operator interface panels, and industrial enclosures where durable, reliable momentary contact switching is required.

This switch is suited for both commercial and industrial installations where a 22 mm panel cutout is standard. Its NEMA 4X and 13 ratings make it appropriate for indoor and outdoor environments requiring protection against dust, oil, and corrosion. Typical applications include motor control centers, conveyor control panels, pump control stations, and general-purpose machinery. The dual green and red operator configuration supports common start-stop or on-off control arrangements in a single compact assembly.

Key Features

• 22 mm mounting hole diameter fits standard industrial panel cutouts
• Momentary On-Off switch sequence for start-stop control applications
• Flush push-button style with rectangle-shaped green and red operators
• Chromium-plated metal bezel for durability and corrosion resistance
• Shock-resistant and vibration-resistant construction for industrial environments
• NEMA 4X and 13 rated for protection against dust, oil, and washdown conditions

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 22 mm industrial control panel cutouts conforming to standard operator interface mounting configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before installing or replacing the switch. Verify panel cutout diameter matches the 22 mm mounting requirement before installation. Do not exceed the rated electrical load specified in the manufacturer documentation for this switch series.
