Schneider Electric ZB4BA7120 Push-button Switch 22mm

Product Description

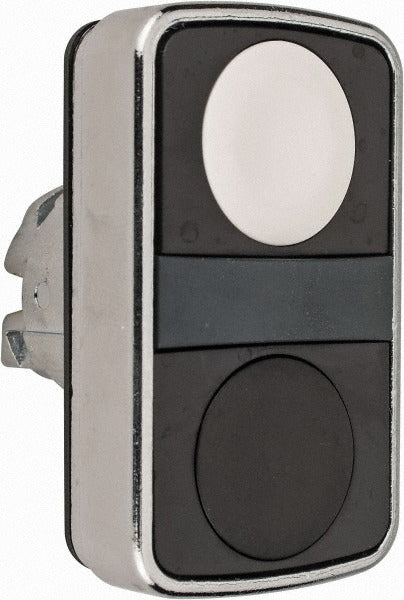

The SCHNEIDER ELECTRIC ZB4BA7120 is a momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter and a flush-mount, rectangular operator in black and white. The bezel is constructed from chromium-plated metal, providing durability in demanding environments. The switch operates in an On-Off sequence with momentary (MO) action, meaning it returns to its default state when released. It is rated for shock and vibration resistance, making it suitable for equipment subject to mechanical stress. Licensed electricians and control panel builders are the primary installers of this device.

This push-button switch is used in industrial and commercial control panel assemblies where a non-illuminated, momentary operator is required. It is appropriate for machine control stations, process equipment panels, and other applications requiring a NEMA 4X or NEMA 13 rated enclosure environment. The 22 mm body size is a widely adopted standard in industrial control components, fitting standard 22 mm cutout operator stations. It meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1, making it suitable for both North American and international installations.

Key Features

• 22 mm mounting hole diameter fits standard industrial operator station cutouts
• Momentary (MO) action with On-Off switch sequence
• Non-illuminated flush rectangular operator in black and white
• Chromium-plated metal bezel for corrosion and wear resistance
• Shock-resistant and vibration-resistant construction
• NEMA 4X and NEMA 13 rated for wash-down and contaminant-resistant environments
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, and JIS C 4520

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 22 mm industrial control stations. Specific contact block and body compatibility should be verified against the ZB4 series product family documentation from the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the control panel before removing or installing any operator components. Ensure the mounting hole diameter and panel thickness are within the switch's specified range before installing. Do not exceed the rated electrical and environmental specifications for the device.
