Schneider Electric XVCTL1 Tower Light Module Led 24V

Product Description

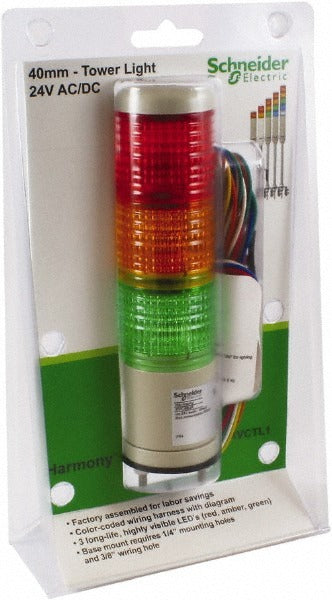

The SCHNEIDER ELECTRIC XVCTL1 is a preassembled stackable tower light module unit designed for industrial signaling and visual status indication. It produces steady LED illumination in green, red, and amber, making it suitable for machine status, process monitoring, and safety alert applications. The unit operates at 24 VAC/VDC and draws 75 milliamps, keeping energy consumption low across continuous-duty installations. Base mount configuration allows straightforward integration onto standard tower light columns. Licensed electricians and industrial maintenance technicians are the primary installers of this component.

The XVCTL1 is applied in manufacturing, process control, and automation environments where visual annunciation is required at a glance. The three-color LED array communicates distinct operational states simultaneously without requiring additional lamp modules for basic run, fault, and warning indication. Its preassembled construction reduces field wiring time compared to component-built assemblies. Typical installations include machine tool panels, conveyor systems, packaging equipment, and control cabinets requiring a compact, stackable signal tower solution.

Key Features

• Three-color LED output: green, red, and amber in a single preassembled unit
• Steady illumination mode for clear, consistent status indication
• 24 VAC/VDC operation for compatibility with common low-voltage control circuits
• 75 milliamp draw supports use in energy-conscious panel designs
• Base mount design integrates with standard stackable tower light columns
• Preassembled construction reduces installation and wiring time

Compatibility

Designed as an OEM-style replacement or expansion module for standard stackable industrial tower light column systems operating at 24 VAC/VDC.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing the module. Verify supply voltage matches the 24 VAC/VDC rating of the unit before energizing. Do not exceed the rated 75 milliamp current draw when integrating into existing tower light assemblies.
