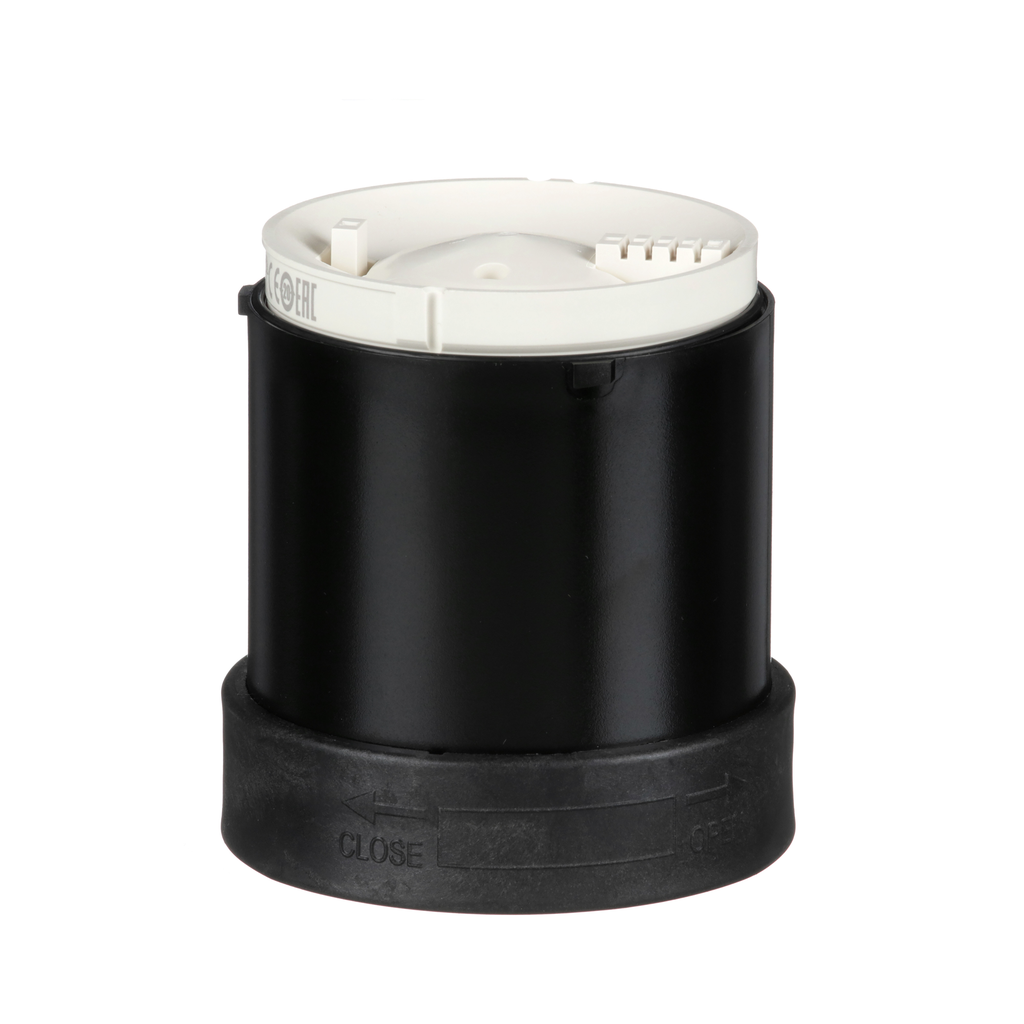

Schneider Electric XVBC9B Square D 70 mm 48 VAC/VDC 90 dB Beacon Audible Sounder Unit

Product Description

Schneider Electric XVBC9B is a 70 mm audible sounder unit that operates on 48 volts AC or DC and generates a sound output of up to 90 decibels at one meter. This unit is designed for easy integration in various signaling applications across numerous environments.

• Operates at 12 to 48 volts AC/DC
• Sound output ranges from 70 to 90 dB at a distance of one meter
• Compliant with several international standards, including UL 508 and EN/IEC 60947-5-1

Product Highlights

The XVBC9B unit functions well in applications that require audible alerting, including automotive, machine tools, and material handling.

Product Information

Standard Information

• Catalog Number: XVBC9B
• Brand: Schneider Electric

Technical Specifications

• Type: Audible Unit, Indicator Bank
• Width: 70 mm
• Height: 63 mm
• Output: 70 to 90 dB at one meter
• Weight: 0.37 lb
• Current: 15 mA
• Loudness: 70-90 dB
• Standard: EN/IEC 60947-5-1
• Enclosure: NEMA 4X, UL 508
• Power Supply: 12 to 48 V AC/DC, < 15 mA
• Country of Origin: Indonesia
• Operating Temperature: -25 to 50 degrees C
• Storage Temperature: -40 to 70 degrees C
