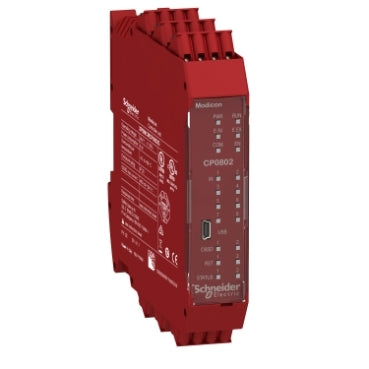

Schneider Electric XPSMCMCP0802G controller, Modicon MCM, 8 inputs 2 outputs, monitors expansion modules, spring

Product Description

The Schneider Electric Modicon MCM safety controller CPU, MPN XPSMCMCP0802G, operates at a supply voltage of 24V DC. It features eight safe digital inputs and two start/restart interlock inputs. This controller has two OSSD output pairs, four test outputs, and two status outputs, equipped with captive spring clamp terminals. A Mini USB 2.0 connector allows configuration with EcoStruxure Machine Expert - HVAC software. The device supports standalone use or can connect with up to fourteen expansion modules, allowing for a scalable solution for safety functions.

• Expandable up to 128 inputs and 16 outputs.
• IP20 rated for safety.
• Suitable for monitoring various safety functions in industrial environments.

Product Highlights

This modular safety controller is designed for machines needing multiple safety function monitoring.

Product Information

Standard Information

• Catalog Number: XPSMCMCP0802G
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 24V DC
• Power Dissipation: 3W
• Weight: 0.25 kg
• Dimensions: 22.5 mm (Depth), 99 mm (Height), 114.5 mm (Width)
• Housing Color: Red
• Certification: Category 4, PL e according to EN/ISO 13849-1
• Country of Origin: United States
