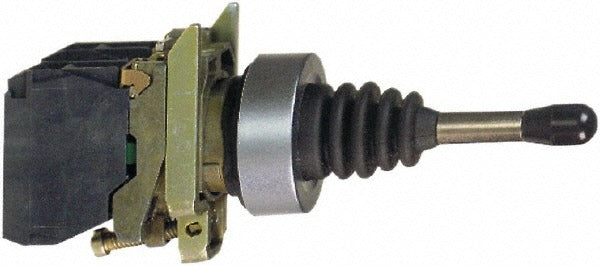

Schneider Electric XD5PA22 Joystick Controller Switch

Product Description

The SCHNEIDER ELECTRIC XD5PA22 is a 3-position momentary joystick controller switch designed for industrial control panel applications. It features a round handle and a momentary (MO) action, returning to center position when released. The switch mounts through a 22mm diameter hole and operates across a wide temperature range of -13 degrees F to 158 degrees F. Rated IP66 for dust-tight and high-pressure water jet protection, it is suited for demanding environments where moisture and contamination are concerns. Licensed electricians and industrial controls technicians are the typical installers of this switch type.

This joystick controller switch is used in industrial and commercial control panel assemblies where operators need to command directional or multi-axis motion control signals. Common applications include machine tool controls, conveyor systems, material handling equipment, and other automated machinery requiring operator-initiated momentary switching across three positions. The compact 22mm mounting footprint makes it compatible with standard industrial enclosure cutouts used widely in plant and facility environments.

Key Features

• 3-position joystick action with momentary (MO) return-to-center operation
• Round handle design for secure operator grip in control panel use
• IP66 ingress protection rating for dust-tight and water jet resistance
• Wide operating temperature range: -13 degrees F to 158 degrees F
• Standard 22mm panel mount hole diameter for broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement or new-installation joystick controller switch for standard 22mm industrial control panel cutouts. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician in accordance with NEC guidelines and applicable local codes. De-energize and lock out the control panel before removing an existing switch or installing this unit. Verify that the panel cutout diameter matches the 22mm mount hole requirement before installation. Do not exceed the rated electrical and environmental specifications for this switch.
