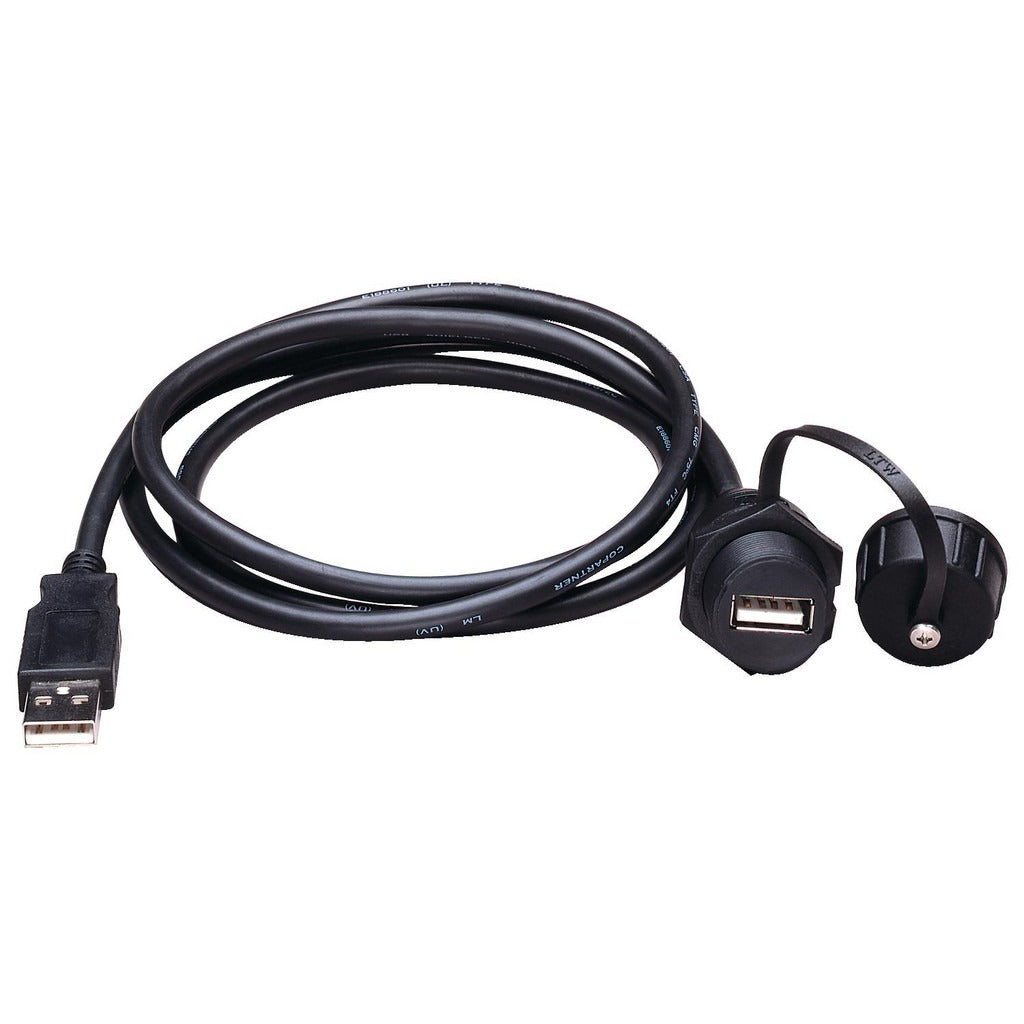

Schneider Electric XBTZGUSB Usb Extension Cable 1m

Product Description

The SCHNEIDER ELECTRIC XBTZGUSB is a USB Type-A extension cable designed to route a remote USB connection through a front cabinet door. It provides a convenient access point for programming, configuration, or data transfer without opening the main enclosure. The cable spans 1 meter in length and uses a standard USB Type-A connector interface. It is intended for use with compatible Schneider Electric HMI terminals and industrial control enclosures. Typical installers include industrial electricians, control panel technicians, and automation integrators performing panel builds or field service work.

This cable is used in applications where USB access must be extended to the exterior of a control cabinet or enclosure door. It eliminates the need to open sealed or secured panels during routine communications tasks such as firmware updates, data logging connections, or PLC programming sessions. The compact form factor and standard connector type make it straightforward to route and secure within standard industrial enclosures.

Key Features

• USB Type-A connection provides standard interface compatibility
• 1-meter cable length suited for front door mounting in typical cabinet depths
• Designed for front cabinet door mounting to enable external USB access
• Compact package dimensions of 8.6 x 4.7 x 1.9 inches for easy storage and handling
• Single-unit packaging with no minimum multi-unit purchase requirement

Compatibility

Designed as an OEM-style accessory for Schneider Electric HMI terminals and industrial control enclosures that support front-door USB extension cable mounting.

Installation Notes

Installation should be performed by a qualified electrician or control panel technician. De-energize the panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before routing or securing the cable inside the enclosure. Ensure the cable is properly strain-relieved at the door mount point to prevent connector stress from repeated door opening and closing. Do not exceed the bend radius of the cable during routing.
