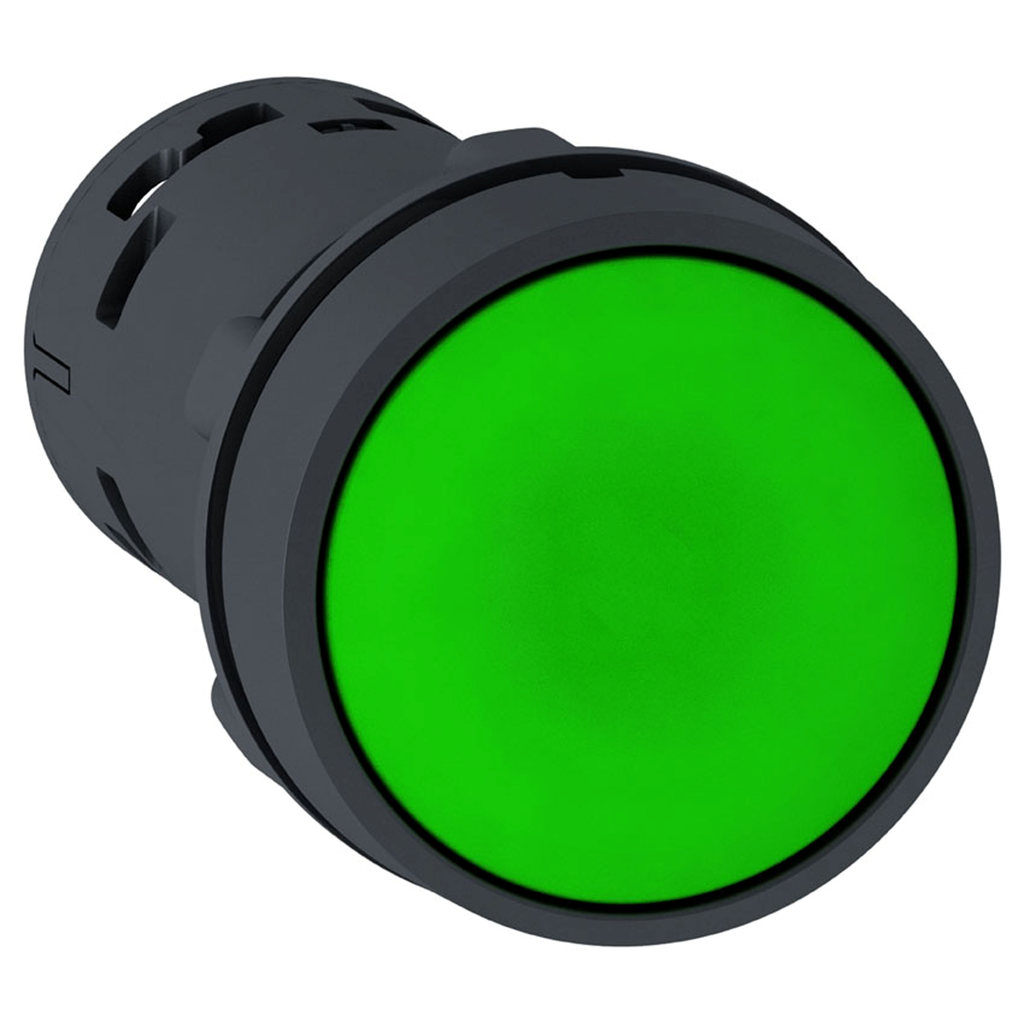

Schneider Electric XB7NA31 Monolithic Push Button 22mm

Product Description

The Schneider Electric XB7NA31 is a monolithic green push button designed for control and automation applications. It features a spring return mechanism, which securely returns to the default position after activation. This push button is installed in standard twenty-two millimeter panel cut-outs, enabling easy integration with various control circuits through screw-clamp terminals.

• Easy installation in standard 22mm cut-outs
• Impact, dust, water, and vibration resistant (IP65 rating)
• Operates in a temperature range of -25 degrees C to 70 degrees C

Product Highlights

This push button is suitable for environments where reliability and durability are essential. Its construction allows it to function effectively in harsh conditions, ensuring safe operation with minimal maintenance.

Product Information

Standard Information

• Catalog Number: XB7NA31
• Brand: Schneider Electric

Technical Specifications

• Size: 0.87 in
• Width: 29 mm
• Height: 29 mm
• Weight: 0.05 lb
• Amperage: 0.1 Amp at 250 V
• Contact Configuration: 1 NO
• Operating Temperature: -25 to 70 degrees C
• Certifications: CSA C22.2 No 14, UL 508
