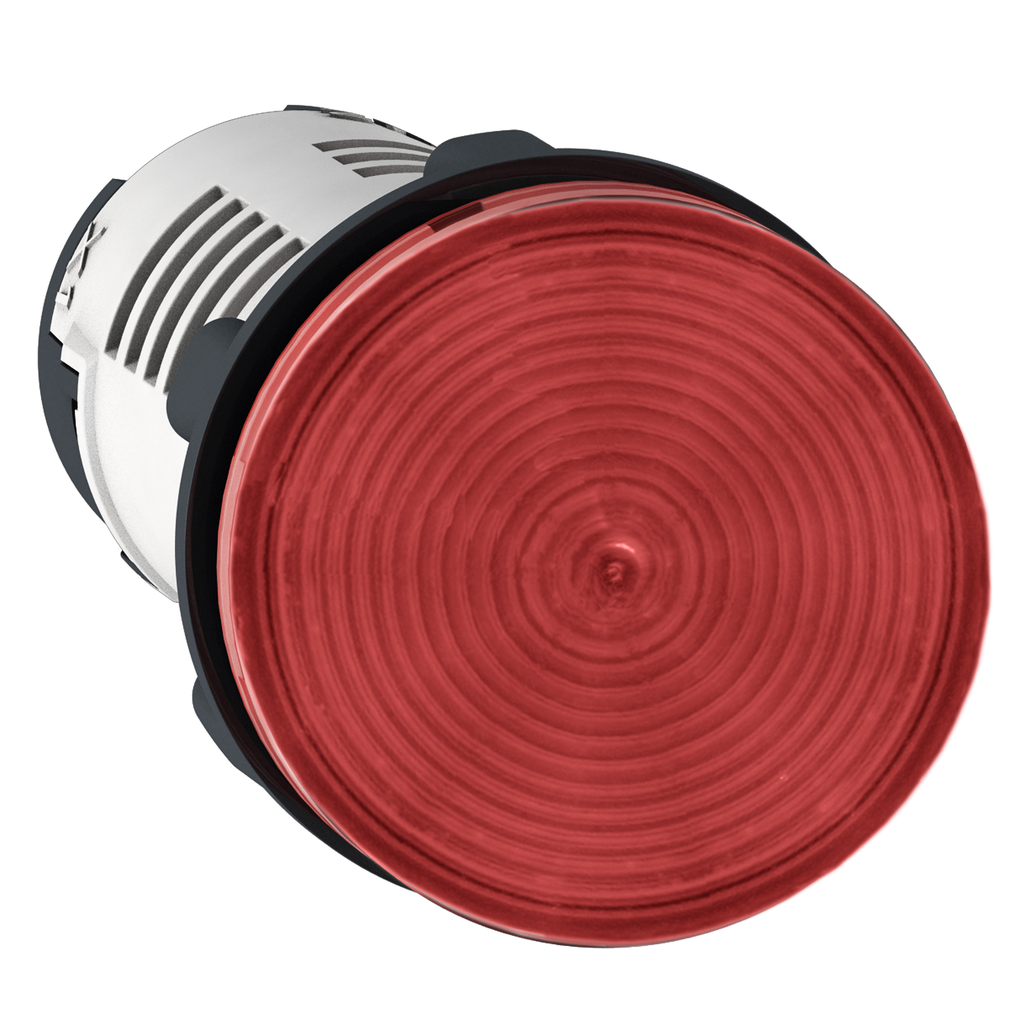

Schneider Electric XB7EV04BP Monolithic Pilot Light 24V AC/DC 22mm

Product Description

Schneider Electric XB7EV04BP is a monolithic pilot light designed for 24V AC/DC applications. This pilot light features an integral LED and screw clamp terminals for easy installation into standard 22-millimeter cut-outs.

• Impact resistant and rated IP65 for durability
• Wide operating temperature range from minus twenty-five to seventy degrees Celsius
• Clearly visible at a distance due to bright LED illumination

Product Highlights

The XB7EV04BP is designed for harsh environments, providing reliable performance across various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: XB7EV04BP

Technical Specifications

• Catalog Number: XB7EV04BP
• Manufacturer: Schneider Electric
• Voltage: 24 Volt AC/DC
• Current: 20-27 mA
• Size: 2.13 inches
• Depth: 54 millimeters
• Width: 29 millimeters
• Height: 29 millimeters
• Weight: 0.04 lb
• Operating Temperature: -25 to 70 degrees Celsius
• Standards: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1
• Country of Origin: Indonesia
