Schneider Electric XB6DW3B5B Push-button Switch Led

Product Description

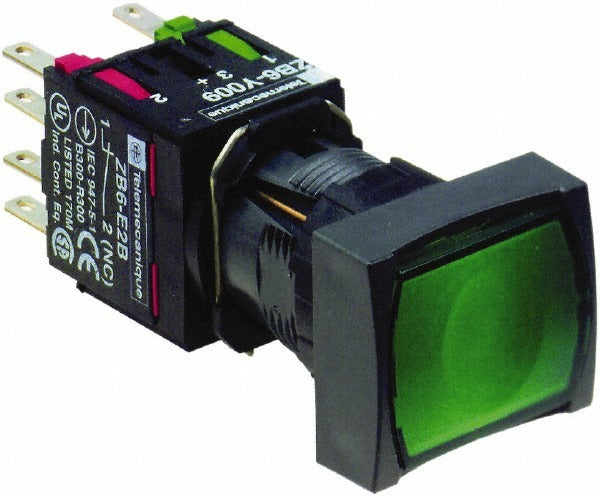

The SCHNEIDER ELECTRIC XB6DW3B5B is a 16 mm momentary push-button switch with integrated LED illumination, designed for use in industrial control panels and machine operator interfaces. The switch features a flush-style, rectangular green button and provides both normally closed (NC) and normally open (NO) contact outputs in a single unit. Quick-connect terminals simplify field wiring. Rated to NEMA 4, 4X, and 13 standards, this switch is built for environments where moisture and dust resistance are required. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The XB6DW3B5B is suited for use in control stations on industrial machinery, manufacturing equipment, and automated process systems where a momentary operator input is needed. Its NEMA 4X rating makes it appropriate for washdown environments and outdoor enclosures. The flush push-button profile reduces the risk of accidental actuation in dense panel layouts. This switch is a web-only replacement SKU and is sold individually.

Key Features

• 16 mm mounting hole diameter for standard 16 mm panel cutouts
• Momentary operation with NC/NO contact configuration
• Integrated LED illumination for operator status feedback
• Flush-style rectangular green button reduces accidental actuation
• Quick-connect terminals for fast, tool-reduced field wiring
• NEMA 4, 4X, and 13 ratings for wet, dusty, and washdown environments

Compatibility

Designed as an OEM-style replacement push-button switch for 16 mm industrial control panel assemblies requiring momentary NC/NO contact operation with LED illumination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and lock out/tag out all power sources before removing or installing this switch. Verify that the panel cutout is 16 mm and that the enclosure rating meets or exceeds the NEMA rating required for the application. Do not exceed the rated electrical parameters for the switch contacts.
