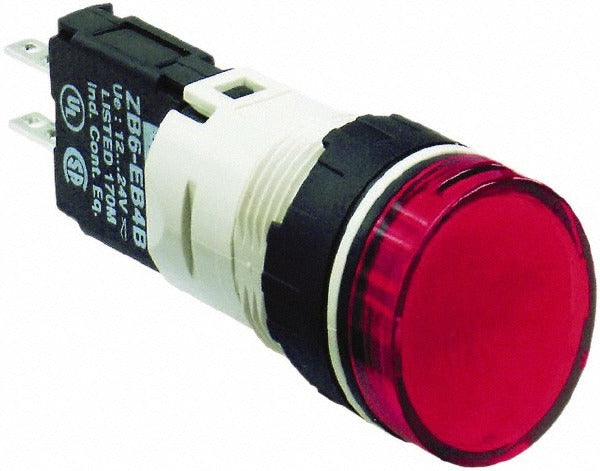

Schneider Electric XB6AV4BB Led Pilot Light 12-24V Red

Product Description

The SCHNEIDER ELECTRIC XB6AV4BB is a 12-24 VAC/VDC red lens LED pilot light designed for panel mounting in industrial and commercial control applications. Operating across a dual AC/DC voltage range of 12 to 24 volts, this indicator light accepts a quick connect connector for fast, reliable wiring. The round lens format and compact 18mm body width make it a standard choice for control panel builders and electricians installing machine status indicators, process equipment panels, and HVAC control enclosures. At 0.02 pounds, it is a lightweight component built to withstand vibration in demanding service environments.

This pilot light is suited for use in industrial control panels, HVAC equipment enclosures, pump control stations, and automated machinery where a clear, low-power LED status indicator is required. Its vibration-resistant construction makes it appropriate for applications where mechanical shock and continuous vibration are concerns, such as compressor panels, motor control centers, and mobile equipment consoles. Electricians and panel builders working to UL 508 panel standards will find this unit meets the relevant certification requirements for listed control panel assemblies.

Key Features

• LED lamp type for long service life and low power draw compared to incandescent pilots
• Dual voltage rating: 12-24 VAC/VDC for flexible panel design
• Red round lens for high-visibility status indication
• Quick connect connector for fast field wiring and replacement
• Vibration-resistant construction for demanding installation environments
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, NEMA 4/4X/13, and additional international standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 18mm round-hole panel cutouts in industrial control panels, HVAC enclosures, and machine control assemblies requiring a 12-24 VAC/VDC LED indicator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify zero voltage before removing any existing pilot light or making wiring connections. The quick connect terminal should be fully seated before panel closure. Confirm the panel cutout matches the 18mm mounting diameter before installation.
