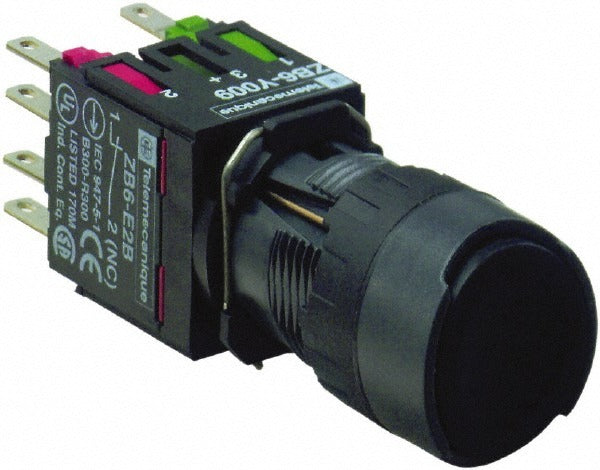

Schneider Electric XB6AA25B Push-button Switch 16mm

Product Description

The SCHNEIDER ELECTRIC XB6AA25B is a momentary push-button switch designed for industrial and commercial control panel applications. It features a 16 mm mounting hole diameter, a flush-style round black button, and a quick-connect terminal type. The switch provides both normally closed (NC) and normally open (NO) contact configurations in a single unit, making it a versatile choice for machine control circuits, operator interface panels, and pilot device installations. Weighing 0.2 pounds and measuring 3.2 inches in length, it is compact enough for dense enclosure layouts. Licensed electricians and control panel builders are the primary installers.

This push-button switch is suited for use in industrial control panels, manufacturing equipment, and automation systems requiring a momentary operator input. Its NEMA 4, 4X, and 13 ratings make it appropriate for indoor and outdoor environments where resistance to dust, oil, and water is required. The flush-button profile keeps it within panel-face clearance tolerances common in tight enclosure builds.

Key Features

• Momentary (MO) operation with NC/NO contact configuration for flexible circuit wiring
• 16 mm mounting hole diameter fits standard 16 mm panel cutouts
• Flush-style round black push button for low-profile panel installations
• Quick-connect terminals for fast, tool-reduced wiring connections
• NEMA 4, 4X, and 13 ratings for dust-tight and washdown-rated enclosures
• Meets multiple international standards including UL 508, EN/IEC 60947-5-1, CSA C22.2 No. 14, and GOST

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 16 mm panel cutout applications in industrial and commercial control enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any pilot device. Quick-connect terminals require properly crimped or fitted connectors sized to match the terminal specifications. Verify enclosure NEMA rating compatibility before mounting in washdown or outdoor environments.
