Schneider Electric XB5AW35G5 Illuminated Push-button Switch

Product Description

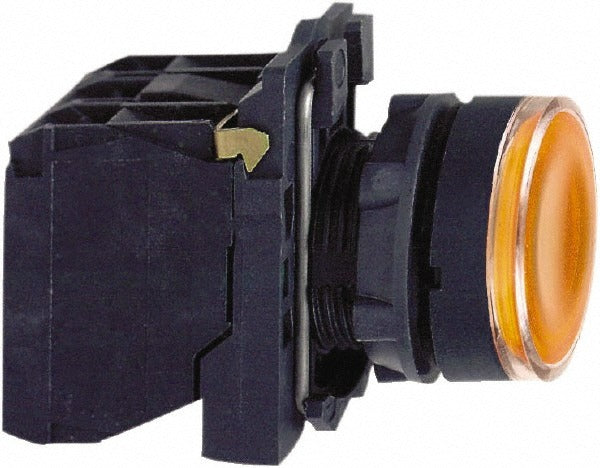

The SCHNEIDER ELECTRIC XB5AW35G5 is an illuminated, momentary push-button switch designed for industrial control panel applications. It mounts in a standard 22 mm hole and features a flush-style, round orange plastic operator with integrated LED illumination. The switch provides both normally closed (NC) and normally open (NO) contact configuration in a single unit, making it suitable for command and signaling functions in machine control and automation panels. Screw terminals simplify field wiring. The unit weighs 0.11 pounds and measures 2.2 inches in length, 1.8 inches in width, and 1.1 inches in height.

This push-button switch is intended for use in industrial control enclosures, operator interface panels, and automated machinery where a momentary switching action is required. The orange illuminated operator serves as both a command input and a visual indicator, commonly used by electricians and panel builders in manufacturing, processing, and facilities maintenance environments. Its NEMA 4X and NEMA 13 ratings make it appropriate for applications requiring resistance to dust, oil, and washdown conditions.

Key Features

• 22 mm standard mounting hole diameter for compatibility with common panel cutouts
• Momentary (MO) operation with NC/NO contact configuration
• LED illuminated orange flush round operator for clear visual status indication
• NEMA 4X and NEMA 13 rated for dust-tight and oil-tight enclosure environments
• Screw terminal connections for straightforward field wiring
• Plastic operator body with round flush profile for low-profile panel installations

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial control panels using standard 22 mm mounting hole cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and any applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. Screw terminals should be tightened securely to ensure reliable contact; do not over-tighten to avoid damaging the terminal block. Verify that the supply voltage and load ratings of the circuit are compatible with the switch specifications before energizing.
