Schneider Electric XB5AW34B5 Push-button Switch 22mm

Product Description

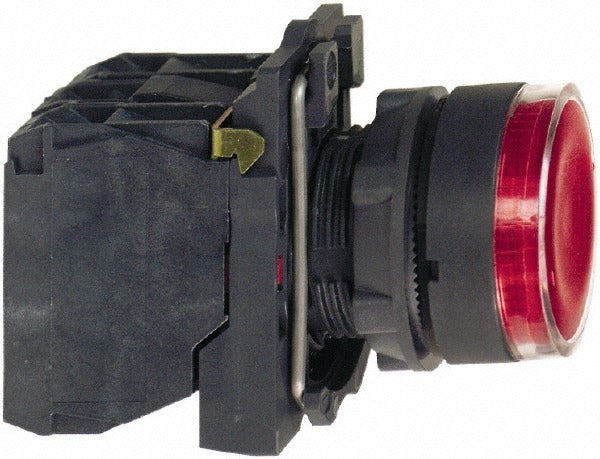

The SCHNEIDER ELECTRIC XB5AW34B5 is a 22 mm illuminated momentary push-button switch designed for industrial control panel applications. It features a flush-style, round red plastic operator with an integrated LED lamp and a screw-terminal contact block rated for both normally closed and normally open configurations. The switch mounts through a standard 22 mm panel cutout and carries NEMA 4X and 13 enclosure ratings, making it suitable for wet, dusty, and corrosive environments. Licensed electricians and control panel builders are the primary installers of this device.

The XB5AW34B5 is used in machine control panels, operator interface stations, and industrial automation enclosures across light manufacturing, process control, and equipment OEM applications. Its NEMA 4X rating makes it appropriate for washdown environments and outdoor enclosures where moisture and contaminant resistance are required. The momentary NC/NO contact configuration supports both start and stop logic in a single unit, reducing component count in panel layouts.

Key Features

• 22 mm mounting hole diameter fits standard IEC-style panel cutouts
• Momentary operation with NC/NO contact configuration for start-stop control logic
• Illuminated with integrated LED lamp for status indication
• Flush round red plastic operator for clear function identification
• NEMA 4X and 13 rated for washdown, dust-tight, and corrosion-resistant enclosures
• Screw-terminal connection for secure, code-compliant wiring

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 22 mm IEC-format control panel cutouts in industrial automation and machine control applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 430 and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. Screw terminals should be torqued per the panel wiring standards in use; do not overtighten plastic operator components. Verify LED supply voltage compatibility with the control circuit before energizing.
